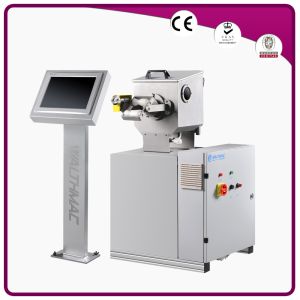

Ultrasonic Plastic Pipe Wall Thickness Measurement Instrument With
High Precision Ultrasonic Probe
-----Model: ULTRAMAC Series------
Ultrasonic Plastic Pipe Wall Thickness Measurement Gauge is a
real-time monitoring system for plastic pipe quality control with
high precision, which includes world-class ultrasound sensors and
data processing software and hardware.
It can realize online measurement of multiple geometric dimensions
such as wall thickness.
Benefits:
1. Accuracy and stability:
The Probe with patent auto-capture technology and high precision
guarantee the measurement data is more accuracy and stable.
2. Automatic identification and marking:
The ultrasonic measurement system will auto-identifying pipe
quality and numbering each section in the process of pipe
manufacturing, it will back up the Quality Report automatically
over half year.
3. Convenient for production management:
It's easy to check out what exact time did the defect pipe and for
reviewing startup and shutdown time of the production line.
Main Structure
Ultrasonic probe distribution structure
The ultrasonic transmitter inside of scanning box can measure
various range of pipe wall thickness
-The numember of ultrasonic probe inside scanning box:4,8,16pcs
- IPB68 protection grade of ultrasonic probes
- Multi-layer pipe measuring is available and thickness of each
layer could separately display.(optional).
Scanning Box
Inside the Scanning box, there is intergrated ultrasonic probes,
probe cooling and purging devices.
The probes convert the DSP Processing pulse incentive energy into
ultrasonic wave and send it out, then convert the small echo
signals into weak electricity signals and transmit back to DSP for
data processing.
Technical Parameter:
| The Application | Gas pipe, water pipe, car cather, medical cather, ocean pipe etc. |
| The Application for material | Plastic pipe, rubber pipe |
| Control Unit | Walthmac Datase 1000R ultrasonic measurement control system |
| Display Unit | 12/15/10' touch-screen display |
| The OD measurement range | 0.25-1600mm |
| Power consumption | <30W |
| The Max measurement precision | 0.001mm |
