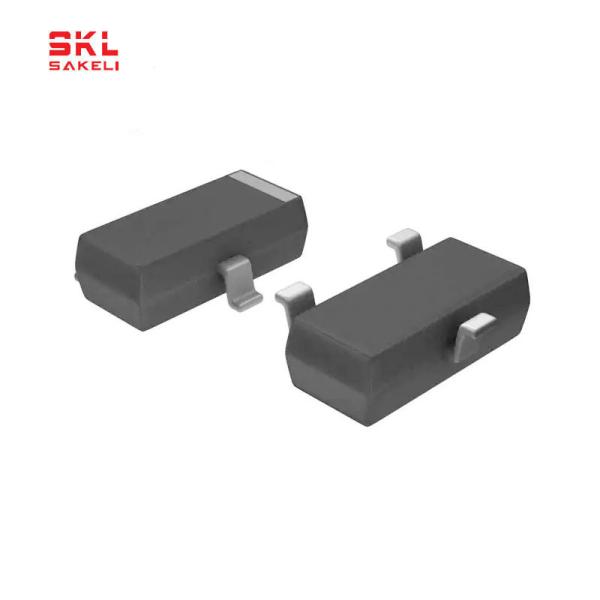

    FDN8601 MOSFET Power Electronics TO-236-3 Package N-Channel POWERTRENCH in Widely Used Surface Mount Package

    Ask Lasest Price
    Brand Name : onsemi
    Model Number : FDN8601
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 999999
    Delivery Time : 1 - 3 days
    • Product Details
    • Company Profile

    FDN8601 MOSFET Power Electronics TO-236-3 Package N-Channel POWERTRENCH in Widely Used Surface Mount Package

    FDN8601 MOSFET Power Electronics TO-236-3

    Package N-Channel POWERTRENCH in Widely Used Surface Mount Package


    FET Type
    N-Channel
    Technology
    MOSFET (Metal Oxide)
    Drain to Source Voltage (Vdss)
    100 V
    Current - Continuous Drain (Id) @ 25°C
    2.7A (Ta)
    Drive Voltage (Max Rds On, Min Rds On)
    6V, 10V
    Rds On (Max) @ Id, Vgs
    109mOhm @ 1.5A, 10V
    Vgs(th) (Max) @ Id
    4V @ 250µA
    Gate Charge (Qg) (Max) @ Vgs
    5 nC @ 10 V
    Vgs (Max)
    ±20V
    Input Capacitance (Ciss) (Max) @ Vds
    210 pF @ 50 V
    FET Feature
    -
    Power Dissipation (Max)
    1.5W (Ta)
    Operating Temperature
    -55°C ~ 150°C (TJ)
    Mounting Type
    Surface Mount
    Supplier Device Package
    SOT-23-3
    Package / Case
    TO-236-3, SC-59, SOT-23-3

    General Description


    This N−Channel MOSFET is produced using onsemi’s advanced POWERTRENCH process that has been optimized for rDS(on),switching performance and ruggedness.



    Features


    • Max rDS(on) = 109 m at VGS = 10 V, ID = 1.5 A
    • Max rDS(on) = 175 m at VGS = 6 V, ID = 1.2 A
    • High Performance Trench Technology for Extremely Low rDS(on)
    • High Power and Current Handling Capability in a Widely Used



    Surface Mount Package


    • Fast Switching Speed
    • 100% UIL Tested
    • This Device is Pb−Free, Halide Free and is RoHS CompliantApplications
    • Primary DC−DC Switch
    • Load Switch
