    Custom Copper Rectangular Super Enamel Wire For Transformer

    Ask Lasest Price
    Brand Name : Ruiyuan
    Model Number : 1.1x1.8mm
    Certification : UL/ISO9001/ISO14001/RoHS/Reach
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : 10Ton/week
    Delivery Time : 2-15 days
    • Product Details
    • Company Profile

    Custom Copper Rectangular Super Enamel Wire For Transformer

    Custom High Quality Enameled Copper Rectangular Wire For Transformer


    Advantage of AIW Enameled Rectangular Copper Wire:

    1)Excellent electrical conductivity and thermal stability

    2)Good Scratch resistance

    3)Good Solvent resistance

    4)Good wire resistance and heat dissipation performance

    5)High efficiency of magnetic field


    Product name

    Custom High Quality Enameled Copper Rectangular Wire For Transformer

    Coating material

    AIW

    Thermal class

    220

    Key word

    Custom High Quality Enameled Copper Rectangular Wire For Transformer


    Item

    Characteristics

    Standard

    Test Result

    1

    Appearance

    Smooth Equality

    Smooth Equality

    2

    Conductor Diameter

    Width

    1.80

    ±0.060

    1.823

    Thickness

    1.10

    ±0.009

    1.087

    3

    Thickness of Coating layer

    Width

    ------

    ------

    Thickness

    Min. 0.020

    0.051

    4

    Overall Diameter

    Width

    Max. 1.90

    1.877

    Thickness

    Max. 1.15

    1.138

    5

    Pinhole

    Max. 3hole/m

    0

    6

    Elongation

    Min. 30 %

    37%

    7

    Flexibility and Adherence

    No crack

    No crack

    8

    Conductor Resistance (Ω/km at 20℃)

    Max. 10.56

    9.69

    9

    Breakdown Voltage

    Min. 0.7KV

    1.30

    10

    Heat shock

    No Crack

    No Crack

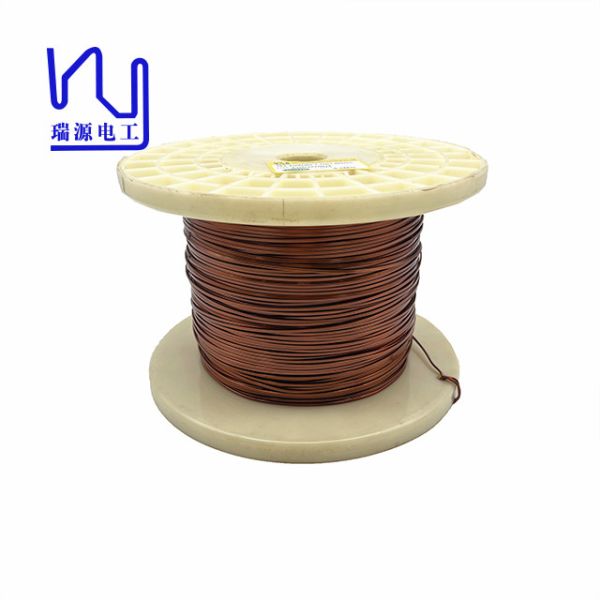

    Quality Custom Copper Rectangular Super Enamel Wire For Transformer for sale
