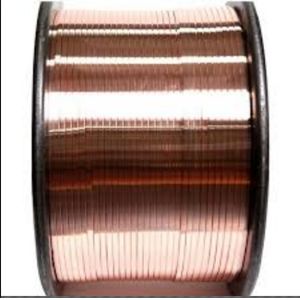

Class 220 CTC Wire Flat Enamelled Copper Wire Winding Wire

Class 220 CTC Wire Flat Enamelled Copper Wire Winding Wire

The flat, belt-like construction of the copper winding wires have led to improvement of performance and reduction in sizing. Those improvements expanded the usage for copper winding wires to be used in various types of components such as cables, sensors, solenoids, transformers, and motors.The benefits of rectangular copper winding wires are: the decrease in distributed capacity which leads to decreased stray capacity, and lamination factor will also be improved (up to 30%) because it will not create gaps unlike winding with round wires.

FEATURES

• The insulation of flat wire could be bondable per the requirements of customers.
• Flat enameled wire with a larger volume efficie(as the comparison table),will decreasevolume of coils.
• The flat enameled wire has a low frict coefficient and good winding property.
• The flat conductor has a wide length/thickness ratio from 2 to 12.

CERTIFICATES
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met

APPLICATION

• Notebook coil.
• Coils of printer.
• Motors of CD driver.
• Transformer.
• Speaker

RUIYUAN was established in 2002, located in Tianjin City,the second largest port city in China.We have been focusing on different kinds of high quality wires: enameled round copper wire, rectangular enameled copper triple insulated wire, silk covered Litz wire, bonding wire and special enameled wire for 23 years.Ruiyuan is one of the pioneers in producing micro thin enameled wires below 0.03mm in China. Our R & D team has 20 years of market experience. In 2019, our finest diameter is 0.011mm, and mass production has been achieved. All of our products are UL, RoHS certified, in line with industry standards IEC60317, JIS C 3202, NEMA, NW82.
