Fully Enclosed Commercial Water Filtration System / Ro Water Purifier Machine

Ask Lasest Price
Brand Name :	Kaiyuan
Model Number :	KYRO-500LPH
Certification :	ISO9001, CE, SGS
Price :	negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	>300sets/month
Delivery Time :	1-7working days(depand on raw materials stocking)

Add to Cart

Product Details
Company Profile

Fully Enclosed Commercial Water Filtration System / Ro Water Purifier Machine

Fully Enclosed Commercial Water Filtration System / Ro Water Purifier Machine

Commercial Water Filtration System description

1. DOW, Hydranaustic Membrane
2. Automatic wash and backwash
3. Low operation cost

Commercial Water Filtration System application:

food,dairy,beverage,biology and pharmacy,boiler,brewing,electronic,electric appliance,electroplate,leather,printing and

dying,painting and dying,paint,chemical industrial,surface treatment etc,supply water treatment production line and all

other industrial equipment of de-ion water

Commercial Water Filtration System details

1. Capacity: 0.5 Ton Per Hour

2. Rated power: 2.5KW/H

3. Voltage: 380V 50Hz 3Phase

4. Desalting rate:>=97%

5. Water recovery rate: 50-75%

6. Conductivity of raw water: ≤400μs

7. Conductivity of pure water: ≤10μs

Commercial Water Filtration System Advantages

**Main part (membrane) of reverse osmosis system is imported from USA.
**Auto stop when no water and full water.
**Auto controller, RO membrane auto flush to protect membrane.
**Auto start when pure water tank have no water.
**Low pressure protection switch to protect high pressure pump when there is no raw water.
**High efficient and low noise high pressure pump.
**Product water conductivity meter to monitor product water quality all the time.
**Input water and output water pressure gauge to monitor RO membrane *differential pressure to remind it's time for chemical cleaning.
**Inlet water solenoid valve to stop water when machine is stop.

Commercial Water Filtration System Processing

Process: raw water pump + quartz sand filter + activated carbon filter + security filter + high pressure pump + ro system + precision filter + water supply point

1. Modularity design, compact structure.

2. System can choose thermal disinfection RO membrane and thermal disinfection EDI; the whole system can realize on-line hot water disinfection.

3. Double softener can achieve series connections by using the valve group and generation alternatively.

4. Feed water pump.1st stage high pressure pump and 2nd stage high pressure pump are all controlled by frequency.

5. System terminal water production uses a dual supply mode

6. Using the middle water storage tank as the buffer tank to realize cleaning on-line, dispensing with separate cleaning system.

7. Making stainless steel tube directly tensile bending in the pipeline as far as possible, avoid welding.

8. For the connection of the pipeline and the spare parts, it adopts the arc to protect the automatic welding track, and to ensure the welding quality

9. Control system: PLC automatic control technology

10. Recording mode: You can choose the paperless recorder for paperless records and also the paper record the key parameters in real time

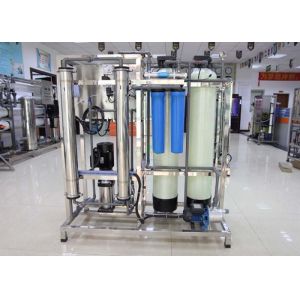

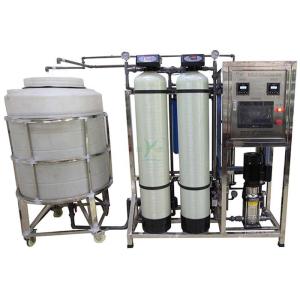

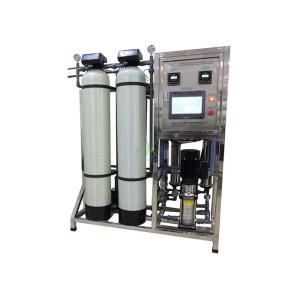

Commercial Water Filtration System Show
