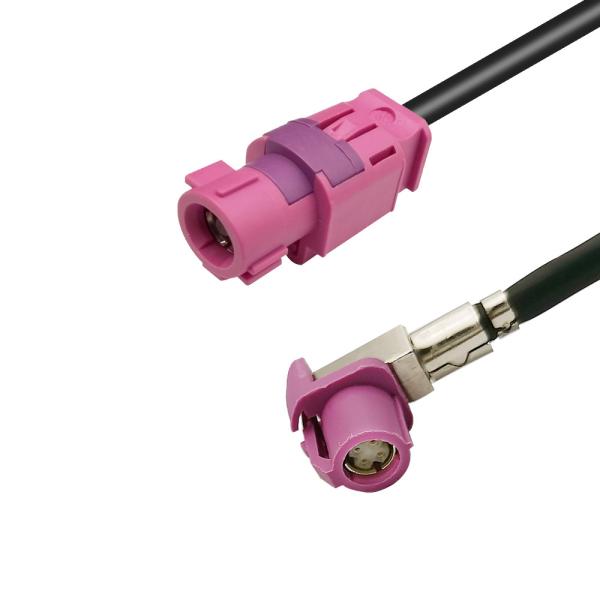

FAKRA HSD Extension Cable 4pin Code H Connector For Car Video
Interface
Introduction of HSD cables:
Along with the rapid development of automotive networking,
automotive connectors, especially RF connectors, antennas, GPS,
high-definition video and other connectors with the central control
and other applications are becoming more and more widespread. HSD
connector is a differential connector, developed and designed
specifically for the automotive industry, generally used for in-car
infotainment systems, camera interfaces and other high-speed data
transmission functions, single-wire four-core.
Main Feature:
1. Up to 6Gbps data transfer rate
2. Suitable for different wire types and sizes
3. Different codes on the plastic housing to prevent misconnection
4. Compliant with LVDS, Ethernet and USB protocols
5. Full range of board-side and wire-to-wire connectors available
for unsealed and sealed applications
6. MOQ: 20 PCS
Application:
1.Traditional infotainment system
2.Dashboard/Touch Screen
3.Bluetooth
4.USB connection
5.Surround camera
6. Global satellite positioning
7. Vehicle remote diagnostics
8. USB connection, IEEE 1394, Ethernet and LVDS camera
Offer Custom:
Custom cable types, connector types and cable lengths are
available. Make sure that the RF cable assembly is suitable for
your project. We will be happy to consider your requirements in
order to provide an effective solution. Please feel free to contact
us.
Technical Specifications:
| HSD |
| Electrical Data |
| lmpedance | 100Ω |
| Frequency range depending on cable type | DC to 6 GHz |
| Insulation resistance | ≥ 1x 10³ MΩ |
| Signal contact resistance | ≤10 mΩ |
| Outer contact resistance | ≤7.5 mΩ |
| Test voltage | 250 V rms |
| Working voltage | 60 V rms |
| Contact current depending on cable type | <3A DC @85℃ ambient temperature |
| Mechanical Data |
| Mating cycles | ≥25 |
| Engagement force | ≤30 N |
| Disengagement force | ≥5N |
| Retention force latch | ≥ 110N |
| Environmental Data |
| Temperature range | -40°C to +105°C |
HSD Coding:
FAQ:
1.Q: What is your brand?
A: LEADSIGN.
2.Q: Can you provide customization service?
A:Of course you can. We accept OEM and ODM orders.
3.Q: Can you send samples?
A: Yes, our samples are free, customers only need to pay the
courier fee.
4.Q: How can I get the price list?
A: Please contact us with detailed inquiry information so that we
can provide you with the latest price.
