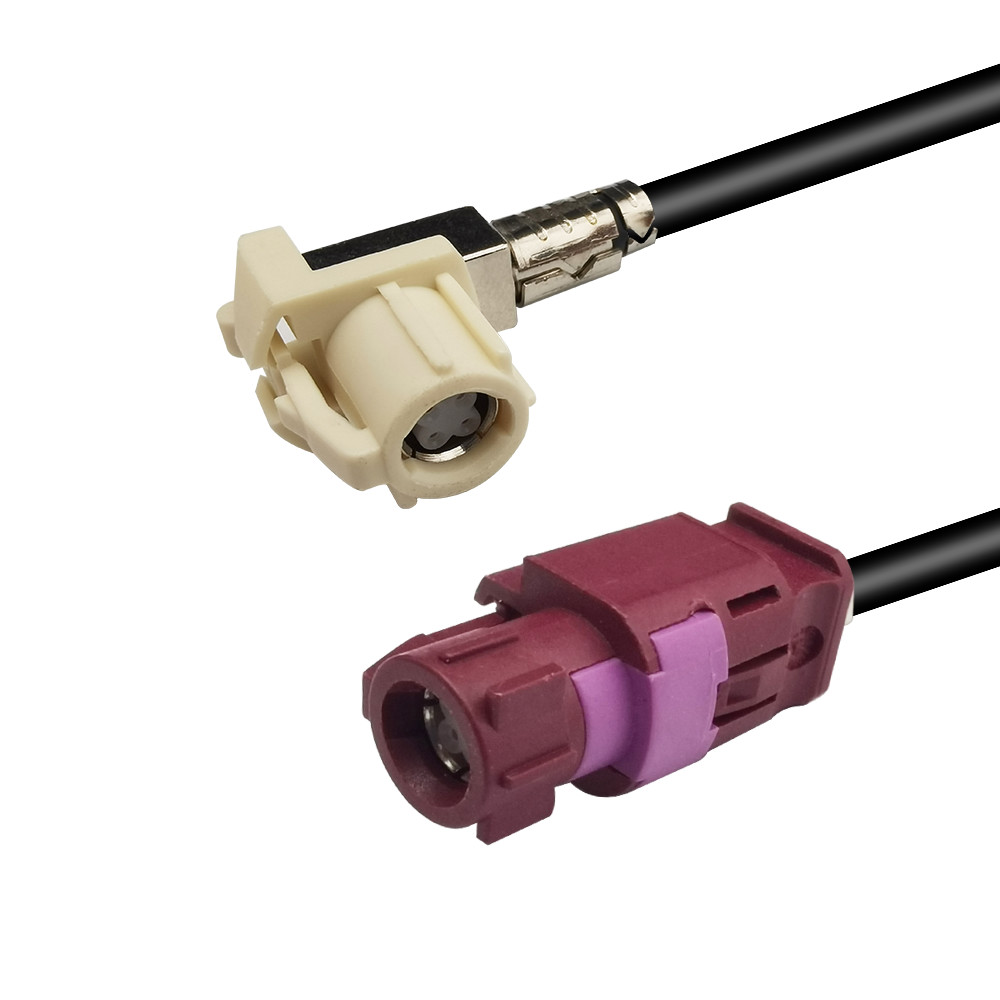

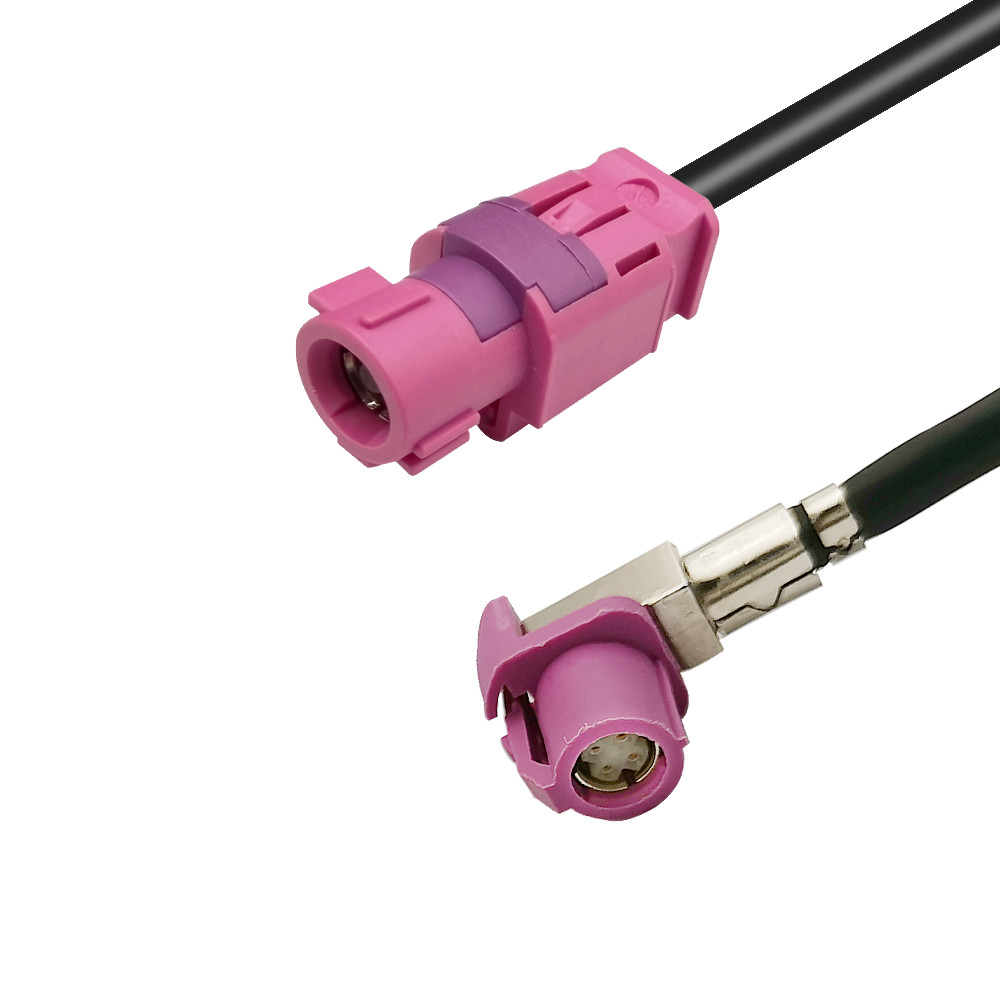

FAKRA HSD Cable Code K To D LVDS Extension Cable For Car Video
Interface
Introduction of HSD cables:
HSD connectors are differential connectors developed and designed
for the automotive industry for applications such as LVDS cameras,
USB and IEEE1394, featuring high speed transmission and high
shielding efficiency. HSD connectors feature multiple color codes,
easy identification and unique keying to prevent mismatching and
meet specific mechanical and environmental requirements of the
automotive industry.
Main Feature:
1. Fully shielded connector system with different wire diameters
and types
2. Compliant with LVDS, Ethernet and USB protocols
3. Full range of connectors for unsealed and sealed applications
4. Expanded portfolio of PCB-side connectors
5. High level of process automation and global manufacturing system
6. MOQ: 20 PCS
Applications:
1.Traditional Infotainment
2.Dashboard/Touch Screen
3.HD screen
4.Bluetooth
5.USB connectivity
6.Dual-band WIFI
7.Surround Camera
Offer Custom:
Custom cable types, connector types and cable lengths are
available. Make sure that the RF cable assembly is suitable for
your project. We will be happy to consider your requirements in
order to provide an effective solution. Please feel free to contact
us.
Technical Specifications:
| HSD |
| Electrical Data |
| lmpedance | 100Ω |
| Frequency range depending on cable type | DC to 6 GHz |
| Insulation resistance | ≥ 1x 10³ MΩ |
| Signal contact resistance | ≤10 mΩ |
| Outer contact resistance | ≤7.5 mΩ |
| Test voltage | 250 V rms |
| Working voltage | 60 V rms |
| Contact current depending on cable type | <3A DC @85℃ ambient temperature |
| Mechanical Data |
| Mating cycles | ≥25 |
| Engagement force | ≤30 N |
| Disengagement force | ≥5N |
| Retention force latch | ≥ 110N |
| Environmental Data |
| Temperature range | -40°C to +105°C |
HSD Coding:
FAQ:
1.Q: What is your brand?
A: LEADSIGN.
2.Q: Can you provide customization service?
A:Of course you can. We accept OEM and ODM orders.
3.Q: Can you send samples?
A: Yes, our samples are free, customers only need to pay the
courier fee.
4.Q: How can I get the price list?
A: Please contact us with detailed inquiry information so that we
can provide you with the latest price.
