    10G CWDM SFP Optical Transceiver 1550nm 40km SFP-10G-ER Duplex Fiber Type

    Ask Lasest Price
    Brand Name : Wangtong
    Model Number : SFP-10G-ER
    Certification : ISO9001
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union,Paypal, D/P
    Supply Ability : 10000pcs/month
    Delivery Time : 5-10 days upon order quantitities
    • Product Details
    • Company Profile

    10G CWDM SFP Optical Transceiver 1550nm 40km SFP-10G-ER Duplex Fiber Type

    SFP-10G-ER Compatible 10GBASE-ER SFP+ 1550nm 40km DOM Transceiver Module for CWDM


    Feature


    • Operating data rate up to 10.3Gbps
    • 1550nm DFB Transmitter
    • Distance up to 40km over SMF
    • Single 3.3V Power supply and TTL Logic Interface
    • Duplex LC Connector Interface,Hot Pluggable
    • Compliant with SFP+ MSA Specification SFF-8431
    • Compliant with IEEE 802.3ae 10GBASE-ER
    • Compliant with IEEE 802.3ae 10GBASE-EW
    • Compliant with SFF-8472
    • Operating Case Temperature Standard:0℃~+70℃/-40℃~+85℃

    Application


    • Gigabit Ethernet
    • Fiber Channel
    • Switch to Switch interface
    • Switched backplane applications
    • Router/Server interface

    Parameter


    Absolute Maximum Ratings


    ParameterUnitMin.TypicalMax.
    Power SupplyV04.2
    Storage Ambient Temperature°C-4085
    Operating Case Temperature°C070
    Operating Relative Humidity%595
    Receiver Damaged ThresholddBm0




    Operating Condition


    ParameterUnitMin.TypicalMax.
    Power SupplyV3.13.33.5
    Operating Case Temp for C-temp°C-1070
    Operating Case Temp for E-temp°C-2585
    Operating Case Temp for I-temp°C-4085
    Operating Relative Humidity%595
    Data Rate(TX/RX)Gbit/s1.25

    Optical Characteristics


    ParameterUnitMin.Typ.Max.
    TX Central Wavelengthnm15501500
    Spectral Width (-20dB)nm1
    SMSRdB30
    Mean Launched PowerdBm27
    Mean Launched Power (TX Off)dBm-39
    Extinction Ratio(Note 1)dB9
    TX Total JitterUI0.43
    Rise/Fall Time (20%-80%)ps260
    RIN15OMAdB/Hz-115
    Optical Return Loss TolerancedB-12
    Transmitter and dispersion Penalty(20km G.652)dB2.3
    TX Optical Eye MaskCompliant With IEEE Std 802.3ah™-2004
    Receive Wavelengthnm12601360
    Sensitivity (Note 2)dBm-30
    OverloaddBm-6
    Receiver Threshold Settling Timens250
    RX Dynamic Range(Note 3)dBm-30-6
    LOS-DeassertdBm-31
    LOS-AssertdBm-45
    SD HysteresisdB0.56
    Receiver ReflectancedB-12

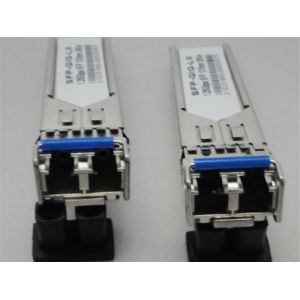

    Product Pictures
