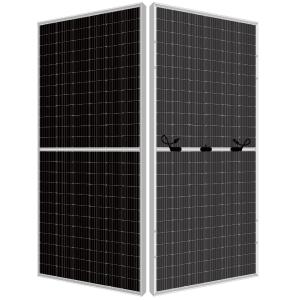

FSM440~FSM450M72HL (440W/445W/450W) 9BB M6 MONO PERC Half-Cell
Bifacial PV Module
Electrical Characteristics under STC (STC: Irradiance 1000W/m², Cell Temperature 25℃, AM=1.5)
| Module Type | FSM440M672D | FSM445M672D | FSM450M672D |
| Maximum Power-Pmax (Wp) | 440 | 445 | 450 |
| Voltage at Maximum Power-Vmp (V) | 41.0 | 41.2 | 41.4 |
| Current at Maximum Power-Imp (A) | 10.74 | 10.81 | 10.88 |
| Open Circuit Voltage-Voc (V) | 49.6 | 49.8 | 50.0 |
| Short Circuit Voltage-Isc (A) | 11.33 | 11.40 | 11.47 |
| Module Efficiency-ηm (%) | 20.2% | 20.5% | 20.7% |
| Operating Temperature | -40℃ to +85℃ |
| Maximum System Voltage | 1000V/1500V DC (IEC) |
| Power Tolerance | 0~+4.99W |
| Temperature Coefficients of Pmax | -0.350%/℃ |
| Temperature Coefficients of Voc | -0.289%/℃ |
| Temperature Coefficients of Isc | 0.048%/℃ |
Mechanical Characteristics
| Cell Type | 9BB MONO PERC 166×83mm |
| No. of Cells | 144 (72×2) |
| Dimension | 2094×1038×35mm |
| Weight | 24 Kg |
| Junction Box | IP68, 3*22A diodes |
| Output Cables | 4.0mm², 500mm Length (Optional) |
| Connectors | MC4 compatible |
| Packing | 31PCS/Pallet, 704PCS/40’HC |
Basic Product Description
- Gallium doped 9BB MONO PERC half cell design provides higher output
power, higher module efficiency and lower hot spot risk.
- Mono PERC Half Cell PV module offers better temperature-dependent
performance, less shading effect on the energy generation.
- Excellent Anti-PID performance guarantee limited power damping for
mass production.
- Advanced glass and cell surface textured design ensure excellent
performance in low-light environments (e.g. early morning, dusk and
cloud, etc).
- Transparent mesh backsheet replaces normal white backsheet, but not
increases any extra weight.
- Extra 5%~25% power generation gain from the rear because of
bifacial solar cells and transparent backsheet adoption.
- Three channels of online EL inspections, visual inspections by
experienced QC staffs and power simulation test before packing.
- MES information system applied together with production line to
trace raw materials and final products both.
- 12 years product warranty and 30 years linear power warranty.
FAQ of Finergy Solar Panels
Q1: What's the production capacity of Finergy?
A: Finergy started automatic production since the end of 2016. We
made large investments on automatic facilities and production
lines. Till now, there're 4 production lines in the factory. The
product power range covers from 50W to 600W. It's possible to
finish more than 5,000 pieces of typical solar panels a day under
full production.
Q2: What's the price of Finergy solar panels?
A: Finergy is one of the pioneering solar panels manufacturers in
China. We structured close partnersgips with Tier1 manufacturers
for OEM collaboration. The raw materials for solar panels
assembling are sourced from top suppliers. The quality is almost
equal with Tier1 brands. Depends on strict management and rich
experience, we're doing better on production waste and cost
control. Thus, you can get top quality products with lower price
from Finergy.
Q3: Is it possible to OEM for us?
A: Both OEM and ODM are acceptable for Finergy. We had rich
experiences for OEM/ODM manufacturing for peers and customers.
Before production, we will confirm raw material BOM list and
production workmanship with customers.
