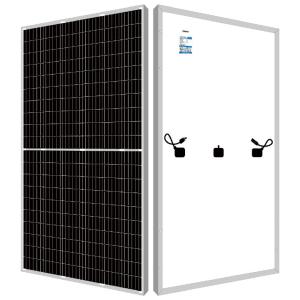

    120cell Hcpv Solar Cell 345W

    Ask Lasest Price
    Brand Name : Finergy Tech
    Model Number : 335W/340W/345W
    Certification : ISO9001, OHSAS18001, IEC61215, IEC61730, TUV
    Price : Cheapest
    Payment Terms : T/T, L/C
    Supply Ability : 10MW per month
    Delivery Time : 10 work day
    • Product Details
    • Company Profile

    120cell Hcpv Solar Cell 345W

    FSM335~FSM345M60HL (335W/340W/345W) MONO PERC Half-Cell PV Module

    KEY FEATURES

    • 5 Busbar Mono Half-Cell adopts PERC technology to guarantee higher output power and higher module efficiency (up to 20.5%).
    • Mono PERC Half-Cell PV module offers better temperature-dependent performance, less shading effect on the energy generation, lower risk of hot spot.
    • Excellent Anti-PID performance guarantee limited power degradation for mass production.
    • Advanced glass and cell surface textured design ensure excellent performance in low-light environment.
    • Certified to withstand: wind load (2400 Pa) and snow load (5400Pa)
    • High salt mist and ammonia resistance certified by TUV SGS
    • 100% EL inspection and power test before packing
    • 12 years product warranty and 25 years linear power warranty

    Electrical Characteristics under STC

    Module TypeFSM335M60HLFSM340M60HLFSM345M60HL
    Maximum Power-Pmax (Wp)335340345
    Voltage at Maximum Power-Vmp (V)34.034.234.4
    Current at Maximum Power-Imp (A)9.879.9610.04
    Open Circuit Voltage-Voc (V)41.541.741.9
    Short Circuit Voltage-Isc (A)10.3610.5510.64
    Module Efficiency-ηm (%)19.9%20.1%20.5%
    Operating Temperature-40℃ to +85℃
    Maximum System Voltage1000V/1500V DC (IEC)
    Power Tolerance0~+4.99W
    Temperature Coefficients of Pmax-0.350%/℃
    Temperature Coefficients of Voc-0.289%/℃
    Temperature Coefficients of Isc0.048%/℃

    Mechanical Characteristics

    Cell TypeMONO PERC 158.75×79.375mm
    No. of Cells120 (60×2)
    Dimension1684×1002×35mm
    Weight19 Kg
    Junction BoxIP68, 3 diodes
    Output Cables4.0mm², 500mm Length
    ConnectorsMC4 compatible
    Packing33PCS/Pallet, 858PCS/40’HC

    Structure of PV Module

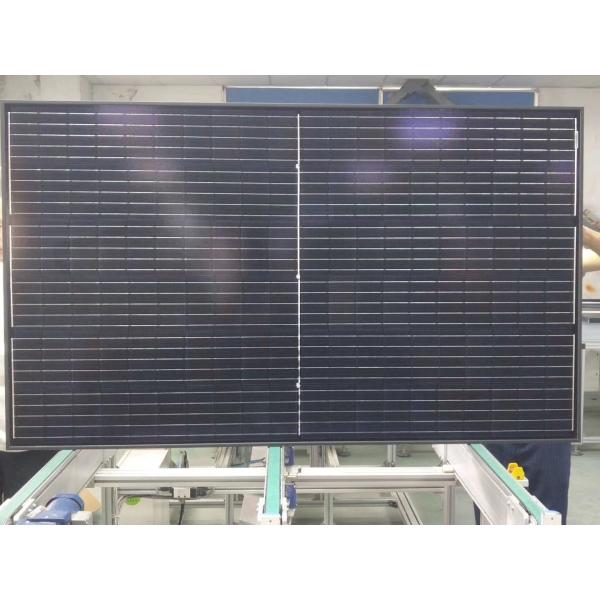

    Quality Inspection At Site

    Packing & Delivery


    Projects
