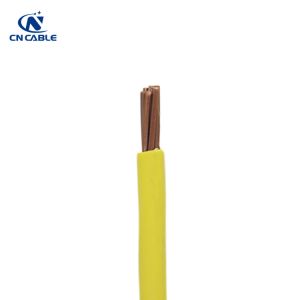

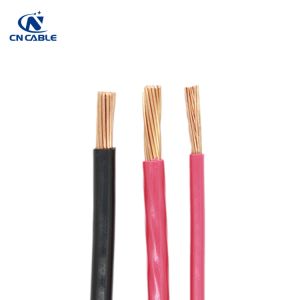

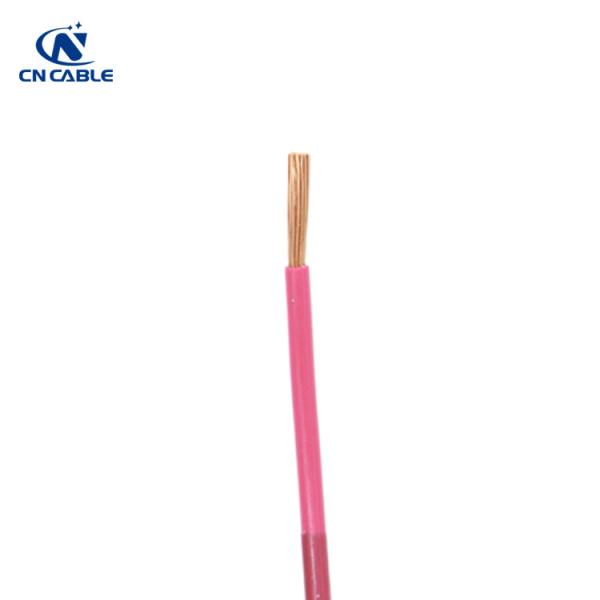

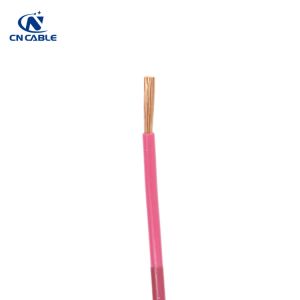

2.5Sqmm Copper Wire Silicone Rubber Compound Cable

H05S-K H03S-K H05SJ-U 2.5 Sqmm Copper Wire Silicone Rubber Insulated Cable

Application:

These cables are suitable for luminaire wiring and can be processed reliably and without problems. They are used at high ambient temperatures and for ambient air temperature between -60° C and +180° C in dry locations.
They are suitable for lighting fittings and equipment, as internal wiring in switchgear and distribution boards.

Applicable Standard:

VDE 0250
DIN VDE 0282-3
HD 22.3 S4.

Technical data and tests:

Rated voltage Uo/U : 300 / 500 V; 450/750 V ≥ 1,5 mm².
Test voltage (AC 50 Hz) : 2000 V; 2500 V ≥ 1,5 mm².
Insulation resistance : min. 20 MΩ/km.
Temperature at conductor : + 180° C.
Short circuit temperature : + 200° C.
Temperature range : - 60° C ~ + 180° C (fixed).
Min. bending radius : 15 x D (fixed).

Packing Material: Coil, Box, Pallet, Drum
