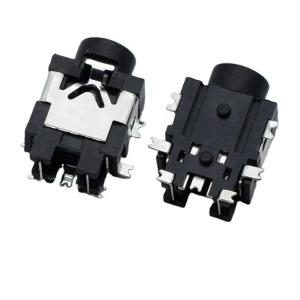

7 Pin Stereo Audio Jack For PCB Mount 4 Pole 2.5mm Headphone Socket
Stereo Audio Jack For PCB Mount 4 Pole 2.5mm Headphone Socket 7 Pin
Phone Jack
Product Description
| product name | headphone socket |
| Product number | PJ-24 |
| Jack | 2.5mm |
| Current rating | DC 30V 0.5A |
| DIELECTRIC STRENGTH | AC 500V ims(50~60Hz)FOR 1 MIN |
| Contact resistance | 50mΩ MAX. |
| Insulation resistance | ≥100mΩ |
| Withstand voltage | 500V AC for 1Min |
| Life test | 5000 (times) |
| Insertion force | 3-20N |
| waterproof level | IP67 |
| Certification | ROHS |
Advantage
Even if we receive an inquiry in the early morning, we will still
respond to your inquiry;
Provide a one-stop solution;
Accept return or exchange within 365 days if any quality issue;
Free samples;
Prompt delivery from stock.
Packing
100% checked before shipment;
Accept return and refund if any quality issue;
Other names for PCB Connectors
PCB Connectors are known as PCB Interconnect products. Specific
terms are also used for the two sides of the connection. There are
also some other names for PCB connectors: Male PCB Connectors are
usually referred to as Pin Headers, as they are simply rows of
pins, while Female PCB Connectors are named Sockets, Receptacles,
or even (somewhat confusingly) Header Receptacles.
Details About Quality
Focus on details with strict production standards;
Metal cover: Made from high-quality metal materials nickel plating
on the surface increases loading performance and prevents
oxidation on it;
Dome contact: Select nice stainless steel/silver coated copper dome
contact, high rebound life, and good contact performance, making
the product more durable;
Switch cap: The suitable switch cap with a smooth surface, and
perfect hand-feeling.
100% Copper terminal: Select good copper and never replace it with
iron materials, quality promise;
High-temperature resistance film: The film can stand for 260
degrees of high-temperature reflow solder;
The foundation by exquisite craftsmanship: Hi-tech foundation is
the basis for quality;
Make semi-finished goods: Fully automatic assembly film, Reduces
the rate of defective traditional crafts. Cost saving.
PCB Connector Orientations
The term PCB Connector refers to a basic multipin connection
system, typically in a rectangular layout. A mating pair of PCB
Connectors will either be board-to-board or cable-to-board
(wire-to-board). The board-to-board layouts can give a range of PCB
connection orientations, all based on 90 degrees increments:
Parallel or mezzanine – both connectors are vertical orientation;90
Degrees, Right Angle, Motherboard to Daughterboard – one connector
is vertical, one horizontal;180 Degrees, Coplanar, Edge-to-Edge –
both connectors are horizontal orientation.
