Inlet Diameter 2.5mm Aluminum Wire Drawing Machine Cast Iron Machine Structure

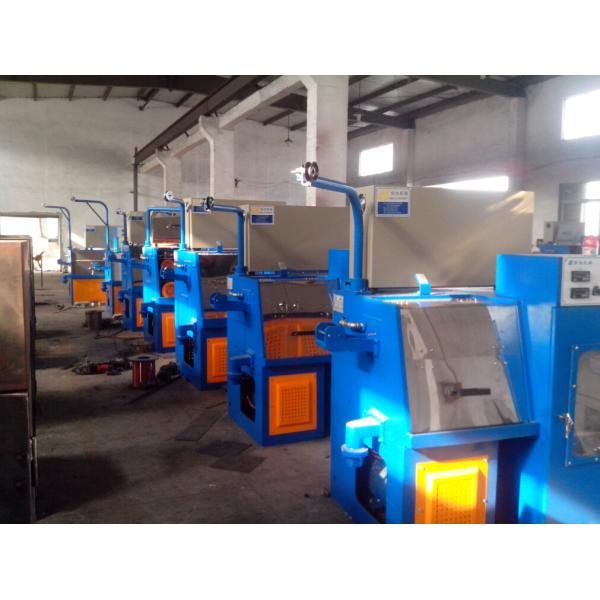

HXE-14DS Aluminium fine wire drawing machine

14DS Aluminium fine wire drawing machine is used to drawing aluminium wire from 1.6mm to 0.6mm.

I. Specifications

1. Inlet wire diameter:1.6mm. Outlet wire diameter:0.6mm. Speed:1500mpm. Dies number:14. Slip ratio of machine:No.1 -No.13:15%, No.14: 8%. Wire drawing mode:standing-mode and 2 axes. Driver: by dual inverters control, Brand: Inovance,Chinese famous brand, made in Shenzhen.

2. Main motor: 15KW AC 3 phase motor. Spooler motor:5.5KW AC 3 phase motor. Motor brand: Wan Nan motor, China classical brand. Capstan:steel with ceramic coating, Max capstan diameter:316mm. Max fix speed capstan:268mm.

3. Machine structure:cast iron. Transmission: by Synchronous belts. Tension control:weight balance by swing arm. Spool size: 300mm-400mm. Take up: shaft type. Receiving weight:50-80kg/max. Brake: magnetic brake.

4. Drawing Lubrication: spray. Power source: (customized). Machine dimension:2600L*1600W*1930H

Machine weight: 2200KG.

II. Components

III. Installation

The machine should be installed in the flat clean, well-ventilated ground, shock-absorbing rubber block on the base of the machine, placed by horizontal correction.

Use the foundation screws to fix the four sides of the machine on the ground to ensure that the machine is in operation, no vibrate.

Electrical control box RST terminal for the external power cord, ground wire terminal must be grounded.

IV. Lubrication

4-1. Ensure that the lubrication oil temperature control in the range of 40 -50 ℃ or lower.

4-2. Use special Silver lubrication oil to protect the wire.

V. Advantage and after-sale service

A: Advantage

(1). HENGXIE has some world famous parts suppliers, has special lubrication system for the gears and bearing.

(2). Body and other key components and parts are produced by our own factory , quality is reliable.

(3). Our company’s developing process in more than 10 years.

B: After-sale service

Our company for all machine product, since the shipment date, our company free after sale maintenance service guarantee period is:

(1) 1 year for mechanical part.

(2) 6 month for electrical part.

Under these situation mentioned, the Seller will not take responsibility, but if the Buyer agree, will charge fees accordingly to repair the machine.

1. Due to wrong operation while shipping. Due to Buyer`s wrong preparation that may cause damage to the machine. Due to Buyer`s wrong operation that may cause damage to the machine. Not in the consuming part list.

2. After agreement are made for the shipping, for any damage, Buyer should inform Seller in letter form to repair in seven days, If beyond the dare, Seller shall take no responsibility.

3. For any other failures due to acts of God (such as lightning, typhoon, earthquake, riots, war, fire or flood) and other factors that will cause damage, Seller shall take no responsibility.

4. Seller guarantee provide long term support regarding the parts and teach. After warranty, will charge accordingly.

      Suzhou Hengxie Machinery Co., Ltd was established in 2005, a total professional in drawing machine field, specialized in copper and aluminium wire drawing machines. Located in Suzhou City, very close to Shanghai, we share a convenient transportation and the most successful working environment.

Our 6,700 square meters of land allows producing a wide range of equipment, developing and researching new products. We always strive to introduce the latest international techniques to update our products.

With management concept of “Excellent quality, Reasonable prices, Superior services”, our hope is to not only meet our customers` expectations but to exceed them.

Here are the machines we have: Copper&Aluminium Rod Breakdown machine, Large and intermediate wire drawing machine with online annealer, Intermediate wire drawing machine, Intermediate wire drawing machine with online annealer, Fine wire drawing machine, Fine wire drawing machine with online annealer, Customized fine wire drawing machine with annealer, Super fine wire drawing machine. As long as we talk, we can always meet your detail requirements.

Our market includes both domestic and overseas. Such as Bangladesh, Egypt, Iran, Malaysia, Syria, Algeria, Kenya, Turkey, South Africa, Latin America and so on.

With the concept of “Stable quality and mutual development”, Hengxie welcome all customers from the world to create a sincere cooperation and win-win benefit in the future.
