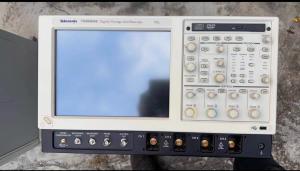

Tektronix TDS6604B Digital Storage Oscilloscope 4 Channels 6 GHz
Color LCD
Description of Tektronix TDS6604B
The Tektronix Tds6604B Digital Storage Oscilloscope is a
high-performance instrument designed for professionals in the field
of electronics and electrical engineering. With its four channels
and impressive 6 GHz bandwidth, it allows for precise and accurate
measurements of complex waveforms. The oscilloscope features a
color LCD display, which enhances the user experience by providing
clear and detailed waveforms with vibrant colors. This makes it
easier to analyze and interpret the data, ultimately leading to
more efficient troubleshooting and design validation. The Tds6604B
is a reliable and versatile tool that offers advanced features and
functionalities, making it a valuable asset for any engineer or
technician working with high-frequency signals.
Specifications
– Model: Tektronix Tds6604B
– Type: Digital Storage Oscilloscope
– Number of Channels: 4
– Bandwidth: 6 GHz
– Display: Color LCD
– Sample Rate: 20 GS/s
– Maximum Record Length: 32 Mpts
– Vertical Resolution: 8 bits
– Input Sensitivity Range: 1 mV/div to 10 V/div
– Time Base Range: 500 fs/div to 1000 s/div
– Trigger Types: Edge, Glitch, Width, Pattern, Runt, Setup and
Hold, Window, Time Out
– Waveform Capture Rate: Up to 400,000 waveforms per second
– Connectivity: USB, Ethernet, GPIB
– Dimensions: 449 mm x 201 mm x 434 mm
– Weight: 12.2 kg
– Power Requirements: 100-240 VAC, 50/60 Hz
List of Options
| 1K | Oscilloscope Cart |
| 1R | Rack Mount Kit |
| 2M | Extended Memory: 8M Max, 2M/CH |
| 3M | 16 MSAMPLES ON EACH CHANNEL |
| 4M | 32 MSAMPLES ON EACH CHANNEL |
| C3 | Calibration Service 3 Years |
| C5 | Calibration Service 5 Years |
| CP2 | ANSI/ITU TELECOM PULSE COMPLIANCE TEST SOFTWARE |
| D1 | Calibration Data Report |
| D3 | Calibration Data Report 3 Years (with Option C3) |
| D5 | Calibration Data Report 5 Years (with Option C5) |
| DVD | TDSDVD Optical Storage Analysis and Measurement Software |
| DVI | TDSDVI DVI Compliance Test Solution |
| ET3 | TDSET3 Ethernet Compliance Test Software |
| FHD | Front-panel 40 GB removable hard disk drive, replaces floppy disk
drive that goes on the rear panel |
| HT3 | HDMI COMPLIANCE TEST SOFTWARE |
| IBA | Infiniband (R) Compliance Module for OPT. RTE |
| J2 | TDSDDM2 Disk Drive Analysis Software |
| J3E | TDSJIT3E Jitter and Timing Analysis Software-Essentials |
| JA3 | TDSJIT3 v2.0 Advanced jitter analysis software. Replaces JT3. |
| JE3 | TDSJIT3 v2.0 Essentials jitter analysis software (Replaces J3E) |
| JT3 | TDSJIT3 Advanced Jitter Analysis Software |
| PCE | PCI EXPRESS COMPLIANCE MODULE FOR OPT. RTE |
| PW3 | TDSPWR3 Power Measurement and Analysis Software |
| R3 | Repair Service 3 Years (including Warranty) |
| R5 | Repair Service 5 Years (including warranty) |
| RJA | Software Bundle of TDSJIT3 (Opt JA3), RT-Eye (Opt RTE), and
Protocol Trigger and Decode (Opt PTD) |
| RJS | SOFTWARE BUNDLE OF TDSJIT3 (OPT JT3), RT-EYE (OPT RTE), AND SERIAL
MASK (OPT SM) |
| RSA | Software Bundle of TDSJIT3 (Opt JA3), RT-Eye (Opt RTE), Serial Mask
(Opt SM), Serial Trigger (Opt ST), and Protocol Trigger and Decode
(Opt PTD) |
| RTE | RT-EYE (TM)Serial Data Compliance and Analysis Software |
| RTJ | SOFTWARE BUNDLE - TDSJIT 3 (OPT JT3) AND TDS RT-EYE (OPT RTE) |
| SM | Serial Communications Mask Testing |
| ST | Serial Pattern Trigger |
| USB | USB 2.0 COMPLIANCE TEST SOFTWARE ONLY |
