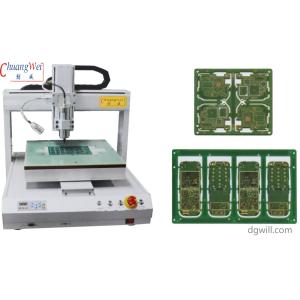

Mini Desktop Economical PCB Router With Positioning Speed 500mm/s
Specification:
| Motor drive system | Servo / stepper motor |
| Spindle speed | 50000r/s |
| Cutting performance | 500mm/s |
| Drive system repeatability | ±0.02mm |
| Cutting speed | Max 100mm/S(depends on PCB material and cutting quality) |
| Resolution | ±0.01mm |
| Configuration | X,Y,Z 3 axis |
| Repeatability | <0.1mm |
| PCB positioning | fixture |
| Load and unload way | Manually |
| PCB thickness | 0.4mm-4mm |
| Working area | 400*400mm(could be customized made) |
| Spindle motor power | 0.5KW |
| Spindle motor speed | 50000r/m |
| Spindle motor cooling | Air-cooled |
| Machine dimension | 650*550*615mm |
| Weight | 73KG |
Feature:
1. Desktop single bench cutting machine, Speeds of up to 100mm/s,
positioning speed 500mm/s
2. Cut continuously without interruption during loading and
unloading
3. High quality shaft system allows the system to quickly ramp,
reduce the period of time, Improve productivity, maintaining high
precision
4. Use high-quality hardware to ensure high rigidity and high
performance All screws are protected from dust and dirt from
entering
to improve the life and performance of the shaft
5. Use high-quality hardware to ensure high rigidity and high
performance
Service:
why us
Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do
machinery training and offer technical support
Mature technique & forerunner to process makes high quality
machinery.
As largest manufactory in South China, we have 12 years experience
on PCB separator machines and soldering machines. pcb routerOur
R&D team continuously upgrade the existing machines to meet the
market development trend.
One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good
appraise and recognized by and oversea clients. We offer parts for
replacement under warranty free of charge, clients only need to
bear freight charge
Effective customer service.
All of us together are stronger and wiser than any one of us
individually. To succeed, we must assume responsibility, cooperate
with fellow associates and withdepartments, effectively comminicate
with one another, foster enthusiam and participate in
decision-making. To be seay reachable by customers and provide
prompt replies to solve their problems and create value for
customers
Our mission Ongoing PCB industry PCB separator technological
innovation, to create greater value, allowing customers to success
More information welcome to contact us:
Email: sales@dgwill.com
Wechat/Skype:+86 18166146357
24 Hours Service,Welcome to Inquiry!!
