OEM / ODM Single Cavity Injection Mold Transparent POA Rear Pad 1*1 No 22730-C

Transparent POA Rear Pad (1*1)

No.22730-C

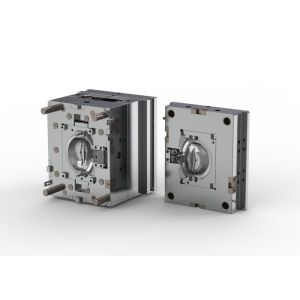

The mold measures 400mm in length, 450mm in width, and 456mm in height. It is a two-plates mold equipped with a cold runner system. The mold base is of standard quality, featuring precise machining and a well-thought-out design that reduces heat loss. A cashew gate is utilized as the gate system. The mold has a tool life of up to 500,000 shots. The surface finish is achieved using A surface EDM to VDI27# standard. Manufactured according to LKM standard, the mold's cavity and core are constructed from hardened steel (1*1/S136).

The mold has measurements of 400mm in length, 450mm in width, and 456mm in height. Notable features of the mold include 1 slide, a particle-free surface, and a precise fit. The runner can be reground and recycled, effectively reducing plastic waste. The mold is designed with a standard mold base (CI3545) with dimensions A = 70, B = 140, and C = 120. Its net weight is 520kg, making it suitable for a 110T machine.

As for the injection molding parameters, the molded part is composed of TPU A80 material. The dimensions of the molded part are approximately 158.75mm x 127.54mm x 50.81mm, with a weight of 58g.

Kindly be advised that the parameters mentioned are tailored to the mold and injection molding process you referenced.

Display diagram

The mold has dimensions of 400mm in length, 450mm in width, and 456mm in height. It is a two-plates mold with a cold runner system. The mold base is standard, with good machining and a scientific design that minimizes heat loss. The gate used is a cashew gate. The tool life of the mold is up to 500,000 shots. The surface finish is achieved through A surface EDM to VDI27# standard. The mold is made with LKM standard and the cavity and core are made of hardened steel (1*1/S136).

The mold features include 1 slide, a surface free from particles, and a good fit. The runner can be reground and recycled, reducing plastic waste. The mold is designed with a standard mold base (CI3545) with dimensions A = 70, B = 140, and C = 120. The net weight of the mold is 520kg, suitable for a 110T machine.

For the injection molding parameters, the molded part is made of TPU A80 material. The size of the molded part is approximately 158.75mm x 127.54mm x 50.81mm, and it weighs 58g.

Please note that these parameters are specific to the mold and injection molding process you mentioned.
