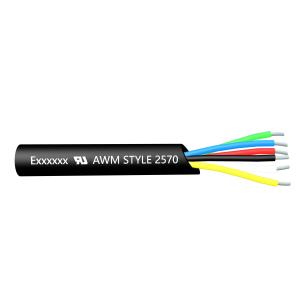

UL2570 Screened Multicore PVC Cable Power Cable High Voltage.
Product Description:
Product Overview: Single Conductor Wire
The Single Conductor Wire is a type of single-wire cable that is
widely used in various industries due to its versatility and
reliability. It is a high-quality product that is designed to
provide excellent performance and durability in a variety of
applications.
Product Attributes:
- Application: General Purpose
- Stranding: Solid
- Rated Temperature: 80°C
- Conductor: Copper
The red color of the Single Conductor Wire makes it easily
identifiable and distinguishes it from other wires, making it
convenient for installation and maintenance. Its general purpose
application allows it to be used in a wide range of settings,
making it a versatile choice for any project.
The solid stranding of the wire provides it with excellent strength
and resistance to bending, ensuring its durability and longevity.
It can withstand high temperatures of up to 80°C, making it
suitable for use in both indoor and outdoor environments. The
copper conductor of the wire ensures optimal conductivity and
efficient transmission of electricity.
Overall, the Single Conductor Wire is a reliable and
high-performing product that is suitable for a variety of
applications. Its red color, general purpose application, solid
stranding, high temperature rating, and copper conductor make it a
top choice for professionals and DIY enthusiasts alike.
Technical Parameters:
| Conductor | Insulation | Jacket | Max. Cond. Resistance at 20°C
(Ω/km) |
| No. of Cores | AWG | Construction
(No./mm) | Diameter
(mm) | Thickness
(mm) | Diameter
(mm) | Thickness
(mm) | Diameter
(mm) |
| 2 | 26 | 7/0.16 | 0.48 | 0.76 | 2.1 | 0.76 | 5.9 | 150 |
| 24 | 11/0.16 | 0.61 | 2.2 | 6.1 | 94.2 |
| 22 | 17/0.16 | 0.76 | 2.4 | 6.5 | 59.4 |
| 20 | 26/0.16 | 0.94 | 2.6 | 6.9 | 36.7 |
| 3 | 26 | 7/0.16 | 0.48 | 2.1 | 6.2 | 150 |
| 24 | 11/0.16 | 0.61 | 2.2 | 6.4 | 94.2 |
| 22 | 17/0.16 | 0.76 | 2.4 | 6.8 | 59.4 |
| 20 | 26/0.16 | 0.94 | 2.6 | 7.3 | 36.7 |
| 4 | 28 | 7/0.127 | 0.38 | 2 | 6.6 | 239 |
| 26 | 7/0.16 | 0.48 | 2.1 | 6.7 | 150 |
| 5 | 28 | 7/0.127 | 0.38 | 2 | 7.2 | 239 |
| 26 | 7/0.16 | 0.48 | 2.1 | 7.5 | 150 |
| ※The above datasheet is for reference only, please refer to the
final specification. |
Packing and Shipping:
Packaging:
Each roll of Single Conductor Wire will be packaged in a sturdy
cardboard box to protect it from damage during shipping.
The wire will be neatly wound and secured with cable ties to
prevent tangling.
The box will be labeled with the product name, size, and quantity
for easy identification.
For bulk orders, the wire will be packaged on wooden spools and
wrapped with plastic film for added protection.
Shipping:
We offer worldwide shipping for our Single Conductor Wire.
For domestic orders, we use reliable courier services such as UPS,
FedEx, and USPS.
For international orders, we use air or sea freight depending on
the size and weight of the order.
All orders will be processed and shipped within 1-2 business days.
Tracking information will be provided for all orders so customers
can monitor the status of their shipment.
