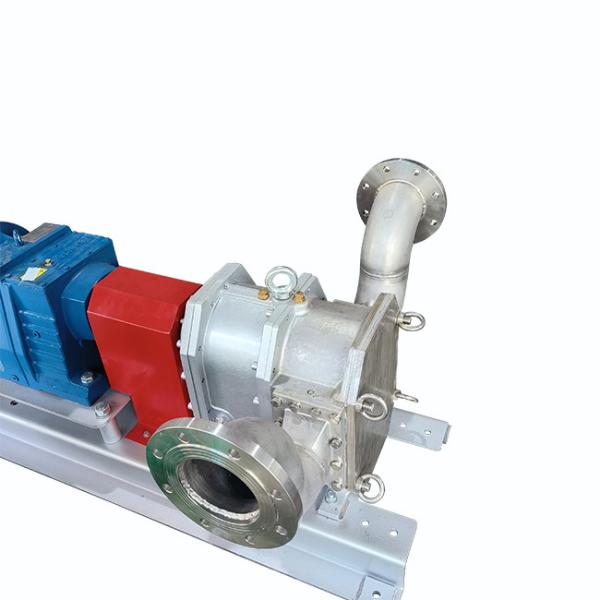

Rotary Lobe Pump For Pumping Massecuite C Into Vertical
Crystallizers
Product Description:
Food grade rotor pump is a sanitary grade fluid transport
equipment. Products have obtained 3A, FDA and CE certification,
product performance has reached the international leading level.
Food grade rotor pump can be used for all kinds of medium, high
viscosity and high solid content of material transportation. Lobe
pumps are widely used in the production process of sugar,
chocolate, dairy products, various syrups, concentrated fruit
juice, jelly, yogurt, honey, ice cream, moon cake stuffing, flour
slurry, soy protein, meat stuffing, condiments, tomato sauce, hot
pot base material, bean paste and other food.
Working principle:
ACCUVON lobe pumps basically consist of two lobe rotors, which
rotate synchronously driven by a pair of synchronous gears in the
gearbox. The rotors are driven by the main shaft and sub-shaft to
rotate in a synchronous reverse direction, which changes the pump
capacity, builds up high vacuum and discharge pressure, thus an
efficient pumping is formed. Gap is kept between the rotors and
between the pump casing, no friction, long life, no damage, no
physical and chemical reaction to the pumped products.
Specifications:
| ACCUVON | rate of flow
l/rev | flow
(m³/h) | pressure
(Mpa) | speed
rpm | Flange diameter
DN mm | power
Kw |
| AC25 | 0.196 | 0.1-7 | 0-1.2 | 10-600 | DN25 | 0.75-5.5 |
| AC50 | 0.392 | 0.2-14 | 0-1.0 | 10-600 | DN50 | 1.1-5.5 |
| AC75 | 0.588 | 0.3-21 | 0-0.6 | 10-600 | DN50 | 1.1-5.5 |
| AP80 | 1.125 | 0.6-400 | 0-1.8 | 10-600 | DN80 | 3-22 |
| AP100 | 1.875 | 1.1-66 | 0-1.4 | 10-600 | DN100 | 3-22 |
| AP120 | 2.864 | 1.7-103 | 0-1.0 | 10-600 | DN100 | 3-22 |
| AP140 | 3.714 | 2.2-133 | 0-0.6 | 10-600 | DN125 | 7.5-22 |
| AF125 | 4.566 | 2.7-164 | 0-1.6 | 10-600 | DN125 | 11-55 |
| AF150 | 6.828 | 4-246 | 0-1.2 | 10-600 | DN150 | 11-55 |
| AF200 | 9.456 | 5.5-340 | 0-0.8 | 10-600 | DN200 | 11-55 |
| AX250 | 12.5 | 7.5-487 | 0-2.5 | 10-650 | DN250 | 22-315 |
| AX300 | 25 | 15-975 | 0-1.0 | 10-650 | DN300 | 30-315 |
| AX350 | 37.5 | 22.5-1463 | 0-0.6 | 10-650 | DN350 | 45-315 |
| AX450 | 50 | 30-1950 | 0-0.4 | 10-650 | DN450 | 55-315 |
| AX350D | 75 | 45-2926 | 0-0.6 | 10-650 | DN350*2 | 90-450 |
| AX450D | 100 | 60-3900 | 0-0.4 | 10-650 | DN450*2 | 110-600 |
8 steps for your guideline to select ACCUVON pump
- What medium do you need to pump.
- Product viscosity in pump, line and at rest.
- Solid content and percentage concentration
- Specific gravity
- Capacity required
- Pumping temperature
- Discharge pressure or sketch of pipework system
- Suction pressure or sketch of pipework system
Advantages
- Compact construction,high performance in a compact design,taking
less area than normal screw pump does (2/3~1/4 of which only)
- Convenient Maintenance in Place ,reduce the time of maintenance and
downtime.No need to disassemble the piping or lift machine..
Replacement of wear parts in the blink of an eye, in-situ by
service personnel.
- Smooth pumping action.
- Large bucket geometry and short passage through the pump provide a
smooth transfer of the pumped fluid.
- Can be used for delivery mixing gas,liquid,particle , big
lumps,fiber, hair, and never be blocked.
- Pump works in unrestricted reversible.
- High capacity of self-priming,maximum at 9.5 meters.
- With a Has a separated sealing cavity,keeping wet, which makes
short time running idle available when lacking medium.
- Suitable for transfer different medium, casing and rotor can be
customized according to client’s request.
Testing Photo
