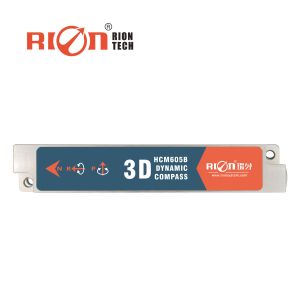

HCM605B Dynamic 3 Axis Electronic Compass Sensor For ROV Underwater Robot Navigation

    Buy cheap HCM605B Dynamic 3 Axis Electronic Compass Sensor For ROV Underwater Robot Navigation from wholesalers

    Buy cheap HCM605B Dynamic 3 Axis Electronic Compass Sensor For ROV Underwater Robot Navigation from wholesalers
    • Buy cheap HCM605B Dynamic 3 Axis Electronic Compass Sensor For ROV Underwater Robot Navigation from wholesalers
    • Buy cheap HCM605B Dynamic 3 Axis Electronic Compass Sensor For ROV Underwater Robot Navigation from wholesalers
    • Buy cheap HCM605B Dynamic 3 Axis Electronic Compass Sensor For ROV Underwater Robot Navigation from wholesalers

    HCM605B Dynamic 3 Axis Electronic Compass Sensor For ROV Underwater Robot Navigation

    Ask Lasest Price
    Brand Name : RION
    Model Number : HCM605B-232
    Certification : CE, ISO
    Price : $510.00/Units
    Payment Terms : T/T, Paypal
    Supply Ability : 1000 pcs per month
    Delivery Time : 7 days for sample
    • Product Details
    • Company Profile

    HCM605B Dynamic 3 Axis Electronic Compass Sensor For ROV Underwater Robot Navigation

    HCM605B Dynamic 3 Axis Electronic Compass Sensor For ROV Underwater Robot Navigation

    HCM600/HCM605 is a high-precision 3-axis electronic compass that integrates a three-axis accelerometer, a three-axis gyroscope, and a three-axis magnetic sensor. It dynamically calculates roll angle, pitch angle, and heading angle data in real-time through a 32-bit high-speed processor. The compass has three working modes: pure compass mode, 9-axis fusion mode, and 9-axis fusion anti-jamming mode (anti-temporary interference). It uses a three-axis accelerometer and a three-axis gyroscope to compensate for heading angle errors caused by significant tilt angles and adopts hard iron and soft iron calibration algorithms, ensuring high-precision heading angles within the range of ±180°.


    Key features include:

    • Heading Accuracy: 0.3°~0.5°
    • Roll Range: ±180°
    • Tilt Resolution: 0.1°
    • Tilt Accuracy: <0.2° (Full Range)
    • Wide Temperature Range: -40℃~+85℃
    • Dimension: L110×W19.5×H19.5mm
    • With Hard-Iron and Soft-Iron Magnetic Calibration and Tilt Compensation
    • Interfaces: RS232/RS485/TTL

    HCM600/HCM605 is suitable for various applications that require attitude and heading angle measurements, such as:

    • Satellite Antenna Search
    • Marine Navigation
    • Surveying and Mapping
    • GPS Integrated Navigation
    • Antenna Servo Control
    • Infrared Imagers
    • Laser Range Finders
    • Plotter Mapping
    • ROV Underwater Robot Navigation
    • Oceanography Measurement Instruments
    • Special Occasion Robots

    The product is available with or without housing, with the housing offering up to IP67 waterproof protection.


    HCM600B/HCM605B parameters
    headingHeading accuracy0.5° tilt<10°
    Resolution0.1°
    Tilt parametersPitch accuracy0.1°<15°(measure range)
    0.1°<30°(measure range)
    0.1°<60°(measure range)
    0.2°<85°(measure range)
    Pitch range±85°
    Roll accuracy0.1°<15°(measure range)
    0.1°<30°(measure range)
    0.1°<60°(measure range)
    0.2°<180°(measure range)
    Roll range±180°
    Resolution0.1°
    CalibrationHard iron calibrationYes
    Soft iron calibrationYes
    Magnetic interference calibrationRotate 360deg horizontally; vertical rotation(option)
    Physical featureSizeL111.5×W19.5×H19.5mm
    Weight≤85g(exclude cable)
    RS232/RS485/TTL5PIN quick plug connector
    interfaceStart delay<50ms
    Max output speed20Hz/s
    Communication speed2400 to 115200baud (default 9600)
    Output formatBinary High-performance Protocol
    PowerPower voltage(default) DC+5V
    Current(max)30mA
    Ideal mode26mA
    Hibernate modeTBD
    EnvironmentOperating range-40℃~+85℃
    Storage temperature-40℃~+85℃
    Vibration resistance100g
    ProtectionIP67
    Electromagnetic compatibilityAccording to EN61000 and GBT17626
    MTBF≥40000 hours/time
    Insulation resistance≥100mego-ohm
    Impact resistant100g11ms, 3 Axial Direction (Half Sinusoid)
    Anti-Vibration10grms, 10~1000Hz
