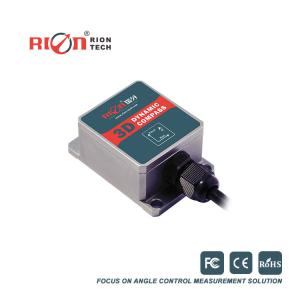

    DDM360B Analog 3D Digital Compass Sensor RION MEMS Technology

    Ask Lasest Price
    Model Number : DCM260
    Brand Name : RION
    Supply Ability : 100000 Piece/Pieces per Month
    Price : $99.00 - $115.00/Pieces
    Payment Terms : T/T, L/C
    Delivery Time : 5-10 work days
    • Product Details
    • Company Profile

    DDM360B Analog 3D Digital Compass Sensor RION MEMS Technology

    3D Digital Compass Sensor Dynamic MEMS Analog Compass Sensor DC 5V Digital Inclinometer




    Features:

    • Heading accuracy: 0.8°
    • Tilt angle measuring range :±85°
    • Tilt angle resolution: 0.1°
    • Tilt angle accuracy: 0.2°
    • Wide temperature : -40°C~+85°C
    • Size: L55×W37×H24mm
    • With hard magnetic ,soft magnetic and angle compensation
    • DC 5V power supply
    • Standard RS232/RS485/TTL output interface
    • IP67 protection class

    Application :

    • Satellite antenna search satellite
    • Marine navigation surveying and mapping
    • GPS integrated navigation
    • Antenna servo control
    • Infrared imager
    • Laser range finder
    • Map for plotter
    • ROV underwater robot navigation
    • Oceanography measurement instruments
    • Special occasion robot


    Electrical Characteristics


    Compass heading parameter

    The best heading accuracy

    0.8° tilt <10°

    1.5° tilt <30°

    2.0° tilt <40°

    3.0° tilt <6

    Resolution

    0.1°

    Compass tilt parameter

    Pitch accuracy

    0.1°<15°(Measuring range)

    0.2°<30°(Measuring range)

    0.3°<60°(Measuring range)

    Pitch tilt range

    ±85°

    Roll accuracy

    0.1°<15°(Measuring range)

    0.2°<30°(Measuring range)

    0.3°<60°(Measuring range)

    Roll tilt range

    ±85°

    Resolution

    0.1°

    The best compensation angle range of compass tilt

    <40°

    Calibration

    Hard iron calibration

    Yes

    Soft iron calibration

    Yes

    Magnetic field interference calibration method

    Plane rotation in a circle (2D calibration)

    Physical features

    Dimension

    L55×W37×H24mm

    Weight

    20g

    RS-232/RS485/TTL interface connector

    5cable 1M direct lead line

    Interface features

    Start delay

    <50MS

    Maximum output rate

    20Hz/s

    Communication rate

    2400 to 19200baud

    Output format

    Binary high performance protocol

    Power

    Power supply

    (Default)DC+5V

    (Customized)DC9~36V

    Current(Maximum)

    45mA

    Ideal mode

    35mA

    Sleep Mode

    TBD

    Enviroment

    Operating range

    -40℃~+85℃

    Storage temperature

    -40℃~+100℃

    Resistance shock performance

    2500g

    Electromagnetic compatibility

    According to EN61000 and GBT17626

    MTBF

    ≥40000 hours/times

    Insulation resistance

    ≥100M

    Shock resistance

    100g@11ms,3Times/Axis(half sinusoid)

    Anti-vibration

    10grms,10~1000Hz

    Weight

    30g(without cable)





    Software Configure :
