KS-3000 Double Pieces Carton Box Stitching Machine 2 Servo Motor
1.Carton Box Stitching Machine Description:
Carton Box Stitching Machine is a high-speed and efficient
automatic machine designed to stitch and seal cardboard boxes. It
consists of a stitching head, an infeed conveyor belt, a
pre-cutter, an inserter, and a post-stitching conveyor belt.
The stitching head contains a set of needles that pierce the edges
of the cardboard boxes and stitches them together, creating a
seamless joint. The infeed conveyor belt takes the cardboard boxes
to the pre-cutter, where they are cut to the desired size. The
inserter then places the pre-cutted cardboard boxes on the
stitching head, and the post-stitching conveyor belt transports the
finished boxes to the packaging area.
Carton Box Stitching Machine is widely used in various industries
such as packaging, printing, shipping, and logistics. Its main
advantages are its speed, efficiency, and accuracy, which can
reduce labor costs and improve productivity.
2.Carton Box Stitching Machine Specification:
| Mode land Parameter | KSPACK-3000 | KSPACK-2700 | KSPACK-2400 |
| Max Paper Size(A+B)*2(Mm) | 6000 | 5400 | 4800 |
| Min Paper Size (A+B)* 2(Mm) | 1060 | 1060 | 1060 |
| Max Box Length A Mm | 2850 | 2850 | 2850 |
| Min Box Length A Mm | 350 | 350 | 350 |
| Max Box Width B Mm | 1800 | 1500 | 1200 |
| Min Box Width B Mm | 220 | 120 | 120 |
| Max Box Height (C+D+C) (MM) | 2500 | 2500 | 2500 |
| Min Box Height (C+D+C)(MM) | 400 | 400 | 400 |
| Max Cover Size C (MM) | 560 | 560 | 560 |
| Min Cover Size C (MM) | 50 | 50 | 50 |
| Max Height D(MM) | 2000 | 2000 | 2000 |
| Min Ehight D(MM) | 150 | 150 | 150 |
| Max Tongue Width (MM) | 40 | 45 | 45 |
| Stitch Distance (MM) | 30-150 | 30-150 | 30-150 |
| Stitch No. | 1-99 | 1-99 | 1-99 |
| Speed (Nail/Min) | 600 | 600 | 600 |
| Weight(T) | 4 | 3.5 | 3 |
| Machine Outside Size(L*W*H)(MM) | 3700*1700*220 | 3400*1700*2200 | 3100*1700*2200 |
3.Carton Box Stitching Machine Feature Advantage:
Schneider france original import four servo motor drive ,high
precise with few mechanic driving part ,reduce the machine damage
The whole machine control system use the moron plc control system
The contractor in the control box adopt simense brand
Displayand circuit breaker adopt schneider ,pohto electric switch
and proximity switch adopt omron branch .
Bottom mould and blade adopt japan tungsten steel
Whole stiching head adopt special steel to make , computer digital
processed
Change the size only need one minute to finish,same as changing the
stiching distance
Can stich box with lid or box no lid ( when customer need the
stiching no lid box must special order )
With automatic counting function in the back part ,the finished
carton can be delivery to the end by pile ( as the setting number
1-99), it is convinnet to strapmechanic speed :600nail/min.
Stiching distance 30-150mm, can be adjustabel.
Two funcion in one machine, can stich single,double carton ,not
normal carton 13.size adopt whole electric type to control,changing
size only need 2-3 mins.
Can stich strengthen wire , single stapler ,double line stich,
finish on one time.
Feeding part can automatic count ,finsiehd product send out wait
strap.
Sutable for midium and samll type carton ,stich quick and easy.
The computer set and automatic adjust the distance of stiching ,the
stich distance is 20-120mm can be ajusted.
Adopt computer screen to show the damage instruction.
No lid box can be stich (special order).
Suitable for 3 ply 5 ply 7ply (when use it on 7ply ,customer should
order i advance).
Automatic wire feed system ,no wire alarm, 20kg big dics wire ,can
save time.
Whole machine electrical part adopt isolated transformer.
Adopt 4 servo motor (2 head motor, 2 control stich distance motor).
4.Our Company:
We are a professional supplier of corrugated machinery,including
automatic high speed flexo printer slotter die cutters,corrugated
board production lines,Rotary die cutters, carton staplers and two
ply corrugated board production lines.Along with our development,we
have set up our own factories. We are now enlarging our product
area to testing equipment and other kinds of packaging machinery.
5.FAQ
Q:Are you the trader or manufacturer?
A:We are the manufacturer with export qualification
Q:Do you make OEM?
A:Yes.here can do
Q:Where are your factory located in?
A:We are in Dongguang town,Cangzhou city,Hebei,china
Q:What is your business process?
A:Talking about clients requirements, confrim machines, make sales
contract,pay for deposit,supplier arrange production,finish
producing machines,buyer test machines,buyer pay for the balance
payment,supplier delivery machine.
6.Our Service:
Free Shipping Replacement Spare You just need to pay the freight
One To One Video Teaching We Provide Operation & Maintenance cd
-11 years experience
-Export to more than 150 countries
-Professional international sales more than 30 persons
-Professional sale team
technical team and after-sales service team
Our KSPACK Group :
Hebei Jinguang Packing Machine Co.,Ltd
Cangzhou Kingsun IMP and EXP Co.,Ltd
Dongguang BaiYing Carton Machinery Co.,Ltd

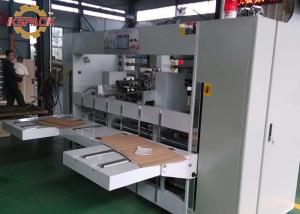

7.Carton Box Stitching Machine Picture:
