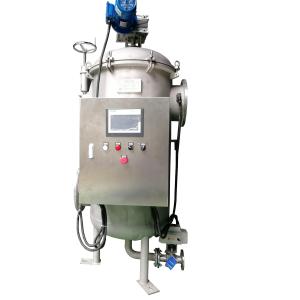

Automatic High Efficient Scraping Self-cleaning Filter
Product Introduction
TPSC series self-cleaning filter (TPSC Filter for short), is the high efficiency scraping self-cleaning
filter removing the impurities particles on the filter element outside by
mechanical scraping, it continuously filters on-line. TPSC filter is designed for fine and accurate filtration ranging from
50-500 micron. It can avoids extruding and breaking the impurities
and is capable of the filtration for water and liquids viscosity up
to 800000cps.
Working Principle
The liquid enters the filter from the inlet(1), flows through the
filter element(6) from outside to inside. The filter element bottom
is connected to the outlet(2), through which the liquid flows out.
After the filter element captures the impurities, the cleaning
action is trigger by the preset time or differential pressure
value. The gear motor(4) drives the scraping blades(7) to rotate
and remove the impurities on the filter element outside surface.
The impurities moves off along the blades and falls down to the
filter bottom. The rotating plates push the gravity impurities into
the collection chamber(5). The impurities are collected at the
filter bottom and in the collection chamber. The discharging valve
open per the preset time and discharging the waste liquid with high
impurity concentration through the drain outlet(3), the purged
liquid can be reclaimed if necessary.
Features and Advantages
1.Automatic 24-hour on-line filtration, no frequent changing out
and cleaning
2.No disposable filter media consumption, save filter media cost
and environment cost
3.Stainless steel scraping blade, good impurity removing
performance
4.Top quality V-SLOT filter element, accurate slots, extremely
smooth, easy to scrap
5.Very low pressure drop, stable flowrate, save energy consumption
6.Close filtration, no dangerout liquid leakage, good for safe
production
7.Discharge waste liquid with high impurity concentration, avoid
valuable liquid loss
8.Equipped with world-famous gear motor, high reliability and long
service life
Main technical parameter
Model | TPSC11 | TPSC22 | TPSC34 | TPSC75 | TPSC100 | TPSC136 |
Filter area(cm2) | 0.11 | 0.22 | 0.34 | 0.75 | 1.00 | 1.36 |
Volume (L) | 16 | 30 | 50 | 145 | 195 | 320 |
Inlet/Outlet (mm) | DN40-DN50 | DN50-DN80 | DN50-DN100 | DN65-DN100 | DN80-DN125 | DN100-DN150 |
Drain outlet (mm) | DN40 | DN50 |
Applicable liquid | Viscidity (<800000cps), Impurity<1000ppm |
Filtration Precision | 50-500μm |
Std design P | 1.0MPa( High design pressure available) |
Designed temp. | 0-200℃( Determined by the seal material) |
Cleaning pressure diff. | 0.05MPa |
Diff pressure switch | Differential pressure transmitter(DPT) or Differential pressure switch(DPS) |
Gear motor | 180W,380V, IP55 |
Filter element type | V-SLOT, 316L |
Housing material | 304/316L/CS |
Scraping blade material | 304/316L |
Seal material | NBR/VITON(FKM) |
Discharging valve | IP65 Pneumatic ballvalve, protection class IP65 |
Supply facility | 380V AC,0.4-0.6MPa ( Clean and dry compressed air) |
For reference only, customized available
