Micro-differential transmitters are consist of both isolation
membrane differential pressure sensor and integrated
circuit, Has characteristics of high precision, good stability,
high reliability and good sensibility. Also can build
high-performance microprocessor(MCU)which can correct nonlinearity
and compensate temperature drift. Achieve accurate data transfer,
local
equipment diagnoses and long-distance bidirectional communication.

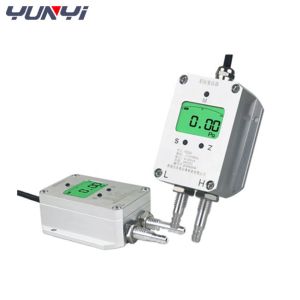

Detailed Images Air pressure transmitter micro differential pressure transducer
Specification Air pressure transmitter micro differential pressure transducer
| LCD disply smart differential pressure transmitter |
| Range | -10Kpa-0-10Kpa |
| Medium | Dry Air |
| Max.Static pressure | 70Kpa |
| Accuracy | ±0.25%(Typical) ±0.5%(Max.) |
| Overload | 20%FS |
| Long term stability | 0.1%F.S/Y(≤2000KPa) |
| Temperature Drift | 0.01%F.S/℃ |
| Operating temperature range | -40℃~70℃ |
| Storage temperature range | -40℃~70℃ |
| Power supply | 9~36VDC |
| Output signal | 4~20mA /0-5V/0~10V//1~5V/RS485 |
| Frequency response | less than 500Hz |
| Insulation resistance |
100MΩ,100VDC |
| Protection |
IP54 |
Application Air pressure transmitter micro differential pressure transducer
Compatible with 316LSS,noncorrosive gases
Wind pressure & velocity of flow in industry process Measuring
pressure of pipeline &firepot
Petroleum industry, chemical industry Meteorological monitoring
Features Air pressure transmitter micro differential pressure transducer
Zero point, full range of sensitivity and temperature compensation,
strong anti-interference, excellent long-term stability,
diversified shape and structure.
Dimension Air pressure transmitter micro differential pressure transducer
Selection Guide Air pressure transmitter micro differential pressure transducer
| FM113 | Differential pressure transmitter |
| | Code | Range |
| | 69 | 0-100pa |
| | 70 | 0-200pa |
| | 71 | 0-500pa |
| | 01 | 0-1kpa |
| | 02 | 0-2kpa |
| | 03 | 0-5kpa |
| | 04 | 0-10kpa |
| | 72 | ±100pa |
| | 73 | ±200pa |
| | 74 | ±500pa |
| | 36 | ±1kpa |
| | 37 | ±2kpa |
| | 38 | ±5pa |
| | 39 | ±10pa |
| | 67 | others |
| | | Code | Power supply |
| | | D1 | 9-36VDC |
| | | D2 | 15-36V(0-10v) |
| | | | Code | Output signal |
| | | | A1 | 4～20mADC |
| | | | V4 | 1～5VDC |
| | | | V5 | 0～5VDC |
| | | | V10 | 0～10VDC |
| | | | DZ | Others |
| | | | | Code | Pressure port |
| | | | | B | Φ8 |
| | | | | DZ | Others |
