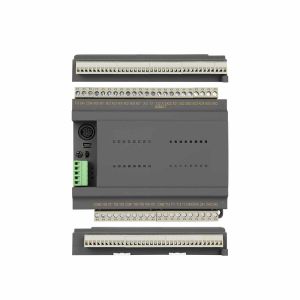

24IO Digital Industrial Control PLC Coolmay For Packing Machine

24 IO Digital Industrial Control PLC Coolmay For Packing Machine

24 IO Digital Programmable Industrial Control PLC For Packing Machine

Model: CX3G-24M
Digital Input:12

Digital Output:12 (Relay or transistor output)
default 6 channels 1 phase 60khz high speed counting input
default 8 channels high speed pulse output (4*100khz+4*10khz) if transistor.
1rs232 +2rs485 com port
* pwm , analog etc can be customized.

Features

1.Powerful.Compatible with FX3G/FX3U/FX3S series PLC , high running speed;

2. Highly integrated. Up to 40DI/40DO, DO can be transistor/ relay /mixed ones;
Up to 16AD(temperature current voltage) 8DA(current voltage optional).

3. Two PLC programming port: Mini Type B USB (with faster reading speed) and RS232 (8 hole mouse head female)
At most 2 RS485 or 1 RS232+1RS485 optional /CAN optional.

4. Multiple High speed counting and high speed pulse High speed counting normally single phase or double phase 5 100KHz, 1 20KHz
channel channel or double phase 2 channel 60KHZ,1 channel 10KHZ;
high speed pulse normally 8 channel, Y0-Y3 is 100KHz, Y4-Y7 is 10KHz.

5. 32K steps program capacity, 32K registers of hold on when power off, support interrupt, linear & circular interpolation, PID
and self-justing.

6. Special encryption. Set password as 12345678 to prevent reading data thoroughly

7. More specifications can be customized

Digital Wiring:

Analog Wiring:

Installation:
