    250L Paint Milling Machine 5um Pigment Grinding Machine

    Ask Lasest Price
    Brand Name : AllWin
    Model Number : SP250 SP200
    Certification : ISO9001
    Price : USD4000--USD80000/set
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 30sets /month
    Delivery Time : 20-30 working days
    • Product Details
    • Company Profile

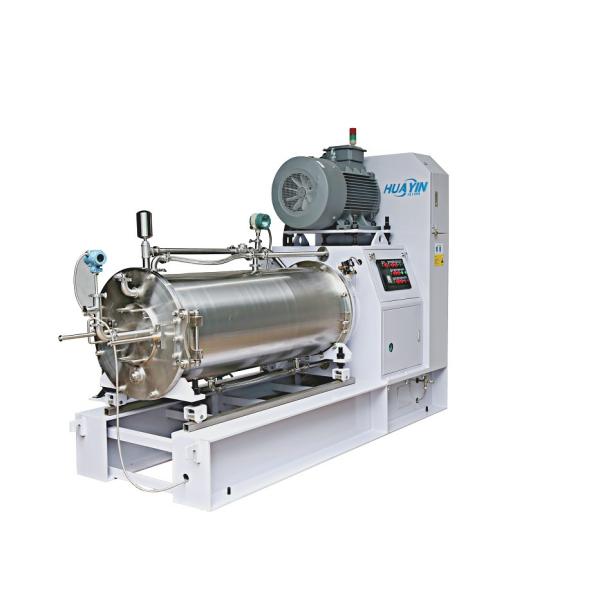

    250L Paint Milling Machine 5um Pigment Grinding Machine

    High 20% Production Efficiency 55 KW High Performance Titanium Dioxide 250 L Wet Bead Mill


    The Main description:

    This model of SP250 is mature series for producing Titanium Dioxide, with high performance and efficiency. we have more than 200sets used in this field and have plentiful experiences, in generally, the efficiency of 2-3 sets series is better than 1 set circulation. we suggest at least 2 sets series for grinding process.


    The working principle:

    The working principle is to use the material pump to feed the solid-liquid mixture material that has been pre-dispersed and wetted by the mixer into the chamber, and the material and the grinding medium in the chamber are stirred by the high-speed rotating disperser, so that the solid particles in the material and The grinding media produce stronger collision, friction, and shearing effects with each other to achieve the purpose of accelerating the grinding of fine particles and dispersing aggregates. After grinding and dispersing, the material passes through a dynamic separator to separate the grinding medium and flows out of the discharge pipe.


    The main parameters:


    NO.Main parameterSP250Note
    1Main motor power(kW)75/553phase,230V 50Hz
    2

    Effective Volume

    (L)

    250
    4Water presure Mpa0.3
    5

    Cooling water consumption

    (L/min)


    2.5 -3m3/h

    The lower limit can be

    selected for the water consumption, in case that the cooling water temperature is lower than 10℃.

    6Overall dimension (mm)2100*1200*2100
    7Weight (kg)3000

    The Configuration instructions


    NoMain partsSP250 wet bead millNotes
    1Outer chamber304 stainless steel
    2Internal chamber304 stainless steel
    3Dispersing shaft40Cr with hard chromium plating
    4Dispersing disk304 Stainless steel
    5Mechanical sealDouble Mechanical seal with Pressure of 0.45 Mpa
    5Feeding and discharging end covers on the cylinder304 stainless steel
    6Turbine centrifugal separator and pegs304 stainless steel and YG6 pges
    7Static discharge screen ring304 stainless steel screen ring with 304.Gaps: 0.5mm.
    8Mechanical seal

    Intelligent double mechanical

    seal with mandatory

    lubricating-cooling system

    9Feeding pumpwithout pump,with appliance parts
    10Oil boxNon-Vision the inner box
    11Appliance configurationNon Explosion-proof machine, suitable for water base materials, explosion-proof motor 30kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with Non EX-proof electrical contacts.
    12Fasteners and connecting parts

    Stainless steel clamp-type

    connecting parts

    Quick and convenient
    Production Show
    The package and delivery
    The main processing equipment
    The United States imported four axis Haas machining center
