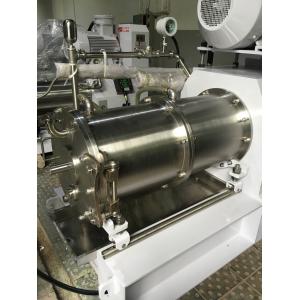

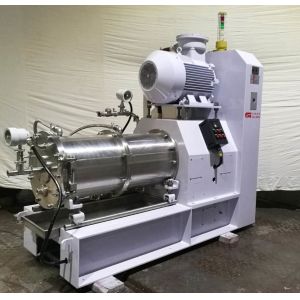

    10um Disc Horizontal Bead Mill Machine Oil Based Wet Grinding

    Ask Lasest Price
    Brand Name : AllWin
    Model Number : SP100
    Certification : ISO9001
    Price : USD 25000--USD 35000/set
    Payment Terms : T/T, MoneyGram, Western Union, L/C,
    Supply Ability : 30sets /month
    Delivery Time : 20-30 Working Days
    • Product Details
    • Company Profile

    10um Disc Horizontal Bead Mill Machine Oil Based Wet Grinding


    Disc Type Water/ Oil Based Wet Grinding In Coating 100L 10 um Horizontal Bead Mill Machine


    The main introduction:


    1. Composition: chamber and disc dispersing system, input system, output system, cooling system, driving system, lubrication system.

    2. Corrision resistence and long worklife.

    3. Fineness ensurance: grinding medium size and screen ring

    4. Temperature control: sectional double spiral water course.

    5. High Efficiency: higher 15-30%

    6. Different materials for dispersing system: All the materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramics for meeting different requirements.


    The Technical Data:

    Nomain parametersSP100Note
    1Motor power (kW)55kW (Non Ex)ex-proof for your choice
    2

    Effective volume of

    grinding chamber (L)

    100volumes can be customized
    3Water pressure (MPa)0.3
    4Cooling water consumption (L/min)2.5 -3m3/hAdvise offer the Cooling water less 10°C
    5Dimensions:L*W*H (mm)2000*900*2000
    6Weight (kg)1800

    The Configuration instructions:


    NoMain partsSP100Notes
    1Material of External vesselSUS 304 stainless steel
    2Material of Inner grinding vesselSilicon Carbide Ceramics, 9Cr18Mo alloy steel, SUS 304 stainless steeldifferent mateials for choice
    3Material of Dispersing shaft40Cr with hard chromium plating
    4

    Material of Dispersing disk

    (agitator disk)

    PU coated 304 stainless steel,
    Cr12MoV, GCr15, 9Cr18Mo alloy steel
    Choose what you need
    5Feeding and discharging end covers on the cylinderSUS 304 stainless steel
    6Static discharge screen ringWire Wound screen ring with 304.Gaps: 0.5mm.
    7Mechanical sealDouble end mechanical seal
    8Feeding pump1"/1.5” ARO diaphragm pump;IngersoII Rand

    The details and spares:
    Display of customer site

    The packing and delivery (firstly anti-abrasion film and packed in wooden boxes)

    The related products:


    Note:
    1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
    2.The Materials of inner chamber and dispersing disks can be choosen according to your different grinding materials and industries.
    3.The control system will match with different demands, such as PLC or traditional button type.


    If need more detailed information and price , please don't hesitate contact us, Also Warmly welcome to visit us.
