High Capacity 37kW SC Bead Mill Machine 60L Paint Grinding Machine

    Buy cheap High Capacity 37kW SC Bead Mill Machine 60L Paint Grinding Machine from wholesalers

    Buy cheap High Capacity 37kW SC Bead Mill Machine 60L Paint Grinding Machine from wholesalers
    • Buy cheap High Capacity 37kW SC Bead Mill Machine 60L Paint Grinding Machine from wholesalers
    • Buy cheap High Capacity 37kW SC Bead Mill Machine 60L Paint Grinding Machine from wholesalers

    High Capacity 37kW SC Bead Mill Machine 60L Paint Grinding Machine

    Ask Lasest Price
    Brand Name : AllWin
    Model Number : SP50 SP60
    Certification : ISO9001
    Price : USD4000--USD19800/set
    Payment Terms : T/T, MoneyGram, Western Union
    Supply Ability : 30sets /month
    Delivery Time : 20-30 Working Days
    • Product Details
    • Company Profile

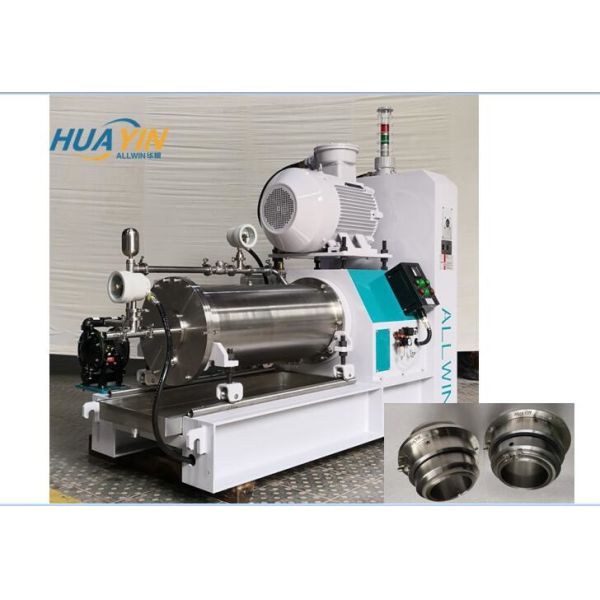

    High Capacity 37kW SC Bead Mill Machine 60L Paint Grinding Machine

    High Capacity In Paint Pigment Pesticide SC Micron 37kW 60L Bead Mill Machine For Oil Base Ex-Proof


    The main introduction of Bead Mill Machine:

    1. High independent technology: This Sand grinding mills are main consists of chamber and disc dispersing system. The double end mechanical sealing with independent technology could resistant to more than 1600 kinds of solvents.

    2. Urtra fineness: The series have great flow rate and super fine discharging, the finally fineness can be reach 1um for D90 .

    3. Better Cooling system:The cooling efficiency is better than normal mills because the sectional double spiral water course is more beneficial to heat exchange.

    4. High Efficiency: The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.

    5. Different materials chosed for inner chamber and dispersing discs: All the materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramics for meeting different requirements.

    6. Bigger and Smaller grinding media for different needs: The grinding media is extremely from 0.3-3.0mm are suitable for this series mills. We recommend the 95% zirconium beads. The discharging is great flow with bigger screen rings which can be easily cleaned and removed.

    7. Widely application used: This Super series are widely used in coating and paint, pigment, pesticide and agro-chemical industry, Pigment and dyestuffs, Printing inks, Gravure inks, food and food processing,non-metallic minerals.


    The Technical Data of Bead Mill Machine:

    Nomain parametersSP50Note
    1Non Explosion-proof motor kW30kW (Non Ex)
    2

    Effective volume of

    grinding chamber (L)

    50
    3Water pressure (MPa)0.3
    4Cooling water consumption (L/min)2.5 -3m3/hAdvise offer the Cooling water less 10°C
    5Dimensions:L*W*H (mm)1940*900*2000
    6Weight (kg)1500

    The Configuration instructions of Bead Mill Machine:

    1. Outer chamber materials: 304 stainless steel

    2. Inner Chamber materials: 304 stainless steel or you need

    3. Dispersing shaft: 40Cr with hard chromium plating

    4. Dispersing disk: PU coated 304 stainless steel

    5. Feeding and discharging end covers on the cylinder: 304 stainless steel

    6.Turbine centrifugal separator and pins: 304 stainless steel and YG6 pins

    7. Static discharge screen ring: Wire Wound screen ring with 304.Gaps: 0.5mm.

    8. Mechanical seal: Intelligent double mechanical seal with indepent technology

    9. Feeding pump: 1.5” ARO diaphragm pump;

    10. Appliance configuration: Non Explosion-proof machine, suitable for water base materials, motor 55kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type).

    11. Fasteners and connecting parts: Stainless steel clamp-type connecting parts.


    This series from 5L to 300L

    "SUPER" SP series of Bead Mill
    Type

    Working Volume

    (L)

    Power

    (kW)

    Grinding Beads

    (mm)

    Throughput

    (kg/h)

    SP557.50.3-3.020-200
    SP1515150.3-3.050-500
    SP3030300.3-3.070-700
    SP5050370.3-3.0100-1000
    SP100100550.3-3.0300-3000
    SP250250750.3-3.0450-4500
    SP300300900.3-3.0550-5500

    The Detailed Production show :
    The company advantages:

    Long history and plentiful experiences with 25 year

    Master the core technology of dispersing and grinding

    With imported four –axis Haas machining center

    Have laboratory for grinding test and detection the fineness.

    With ISO9001 certification and more than 11 patents of sand mill

    Widely used in industries : Paint and Coating ,Pigment and dyestuffs, Printing inks, Gravure inks, Medicine and Cosmetics, food and food processing, Pesticide and Agrochemical industry, Hi-Tech nanometer products.

    The After sales service:

    1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

    2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.


    The packing and delivery (firstly anti-abrasion film and packed in wooden boxes)

    If need more detailed information and price ,please contact us soon and warmly welcome to visit us!
