    Wet Grinding Titanium Dioxide Horizontal Sand Bead Mill 250L With PU Coated Disks

    Ask Lasest Price
    Brand Name : AllWin
    Model Number : SP250
    Certification : ISO9001
    Price : USD52000--USD76000/set
    Payment Terms : T/T, MoneyGram, Western Union
    Supply Ability : 30sets /month
    Delivery Time : 20-30 Working Days
    • Product Details
    • Company Profile

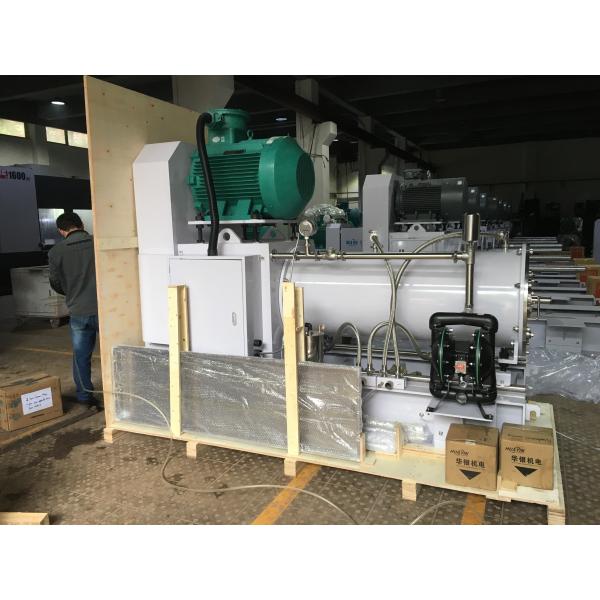

    Wet Grinding Titanium Dioxide Horizontal Sand Bead Mill 250L With PU Coated Disks

    Energy Saving Disk/ Disc Type Titanium Dioxide 250 L Wet Grinding Horizontal Sand Mill


    The main introduction:

    1. High independent technology: This Bead Grinder mills are main consists of chamber and disc dispersing system. The double end mechanical sealing with indepent technology could resistant to more than 1600 kinds of solvents.


    2. Urtra fineness: The series have great flow rate and super fine discharging, the finally fineness can be reach 1um for D90 .


    3. Better Cooling system:The cooling efficiency is better than normal mills because the sectional double spiral water course is more beneficial to heat exchange.


    4. High Efficiency: The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency.


    5. Different materials chosed for inner chamber and dispersing discs: All the materials of contact parts could be chose from wearable steel, stainless steel, PU and ceramics for meeting different requirements.


    6. Bigger and Smaller grinding media for different needs: The grinding media is extremely from 0.3-3.0mm are suitable for this series mills. We recommend the 95% zirconium beads. The discharging is great flow with bigger screen rings which can be easily cleaned and removed.


    7. Widely application used: This super series are widely used in coating and paint, pigment, pesticide and agro-chemical industry, pigment and dyestuffs, printing inks, gravure inks, food and food processing,non-metallic minerals.


    The Technical Data:

    Nomain parametersSP250Note
    1Non Explosion-proof motor kW75kW (Non Ex)
    2

    Effective volume of

    grinding chamber (L)

    250
    3Water pressure (MPa)0.3
    4Cooling water consumption (L/min)2.5 -3m3/hAdvise offer the Cooling water less 10°C
    5Dimensions:L*W*H (mm)2000*1000*2000
    6Weight (kg)2700

    The Configuration instructions:


    NoMain partsSP 250 Non Explosion-proofNotes
    1Outter chamber304 stainless steel
    2Inner chamberSUS 304 stainless steel
    3Dispersing shaft40Cr with hard chromium plating
    4Dispersing diskwearable steel
    5Feeding and discharging end covers on the cylinder304 stainless steel
    6Turbine centrifugal separator and pegs304 stainless steel and YG6 pegs
    egStatic discharge screen ringWire Wound screen ring with 304.Gaps: 0.5mm.
    8Mechanical seal

    Intelligent double mechanical

    seal with mandatory

    lubricating-cooling system

    9Feeding pump1.” ARO diaphragm pump;

    10

    Appliance configurationNon Explosion-proof machine, suitable for water base materials, motor 55kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with NO ex electrical contacts., Control system (button type)
    11Fasteners and connecting parts

    Stainless steel clamp-type

    connecting parts

    Quick and convenient

    The main spare parts


    FAQ:

    Q1: Are you a trading company or manufacturer?

    A1: We are the manufacturer.

    Q2: Where is your company and factory located? How can I visit you?

    A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!

    Q3: Do you have own R&D team?

    A3: Yes, we have 12 engineers, and our products could be customized for your requirements.

    Q4: How about the quality?

    A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.

    Q5: What is your after-sale service?

    A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.

    Q6: How is the payment?

    A6: Firstly paid the deposit, then paid the balanced before shipping.

    Q7: How is the package and delivery?

    A7: Normally are the wooden boxes, and FCL or LCL container for sea shipping.
