Tear Resistant 600V Mining Rubber Flexible Cable EPR Insulation

    Buy cheap Tear Resistant 600V Mining Rubber Flexible Cable EPR Insulation from wholesalers

    Buy cheap Tear Resistant 600V Mining Rubber Flexible Cable EPR Insulation from wholesalers
    • Buy cheap Tear Resistant 600V Mining Rubber Flexible Cable EPR Insulation from wholesalers
    • Buy cheap Tear Resistant 600V Mining Rubber Flexible Cable EPR Insulation from wholesalers

    Tear Resistant 600V Mining Rubber Flexible Cable EPR Insulation

    Ask Lasest Price
    Brand Name : CN CABLE
    Model Number : NSSHOEU-J Cable
    Certification : ISO9001, CE
    Payment Terms : L/C, T/T, Western Union
    Delivery Time : 1-4 weeks
    Price : $1.00 - $20.00/ Meter
    • Product Details
    • Company Profile

    Tear Resistant 600V Mining Rubber Flexible Cable EPR Insulation

    Mining Rubber Flexible Cable 0.6/1kv Nsshoeu-J for Indoor Outdoor Applications


    Product Description

    Application
    For flexible use and fixed installation in mine, in quarries, on construction sites and similar applications. It can bear heavy mechanical stresses, while it has good properties of flame retardant, oils and fats resistance, abrasion, cut, tear resistant.

    They can be used permanently in waste water up to 40°C at a depth of max. 2000 m and in fresh water, salt water, industrial water, rainwater, oily water and sewage contaminated water.

    The cables are suitable for indoor and outdoor applications.


    Reference Standard
    VDE 0250-812


    Cable characters
    Maximum submersing depth 2000 meters
    OIL RESISTANT, UV RESISTANT,OZONE RESISTANT, FLAME RETARDANT
    Rated voltage 0.6/1 kV (600/1000V)
    Max. permissible operating voltage AC 0.7/1.2 kV
    Max. permissible operating voltage DC 0.9/1.8 kV
    AC test voltage - main cores 3 kV (5 Min.)
    Max. tensile load on the conductor 15 N/mm²
    Working temperature fixed ≥80℃
    Min. bending radius ≤ 4 x Cable overall diameter

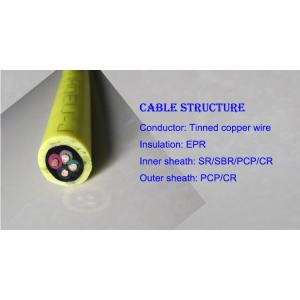

    Cable structure
    Conductor: Flexible tinned copper wire , (class 5)
    Insulation: EPR, Compound type: 3GI3
    Inner sheath: Rubber compound, Basic material: EPR, Compound type: GM1B
    Outer sheath: Rubber compound, type 5GM5
    Core identification: Colored in gray, black, brown, blue, green/yellow up to 5 cores, light gray with black digits for more than 5 cores
    Outer sheath Color: Yellow


    Cable sizeConductor wire dia.

    Approx.

    Conductor dia.

    Cable dia.Cable weightMax. D.C. Resistance at 20℃Min. Bending radius
    No.x mm2mmmmmmkg/kmΩ/kmmm
    3x50+25/3Max. 0.419.3941.730000.393167
    3x70+35/3Max. 0.5111.1245.240000.277181
    3x95+50/3Max. 0.5112.9551.955000.21208
    3x120+70/3Max. 0.5114.5657.268000.164229
    3x150+70/3Max. 0.5116.2760.480000.132242
    3x185+95/3Max. 0.5118.0767.5100000.108270
    3x240+120/3Max. 0.5120.5975.4120000.0817302



    Packaging & Shipping
