SWP-1200 Plastic PVC SPC WPC board crusher grinding machine with
SKD-11 blade
Application:
This crusher is special design for crushing all kinds of relatively
long plastic special shaped materials, such as PVC PE PP hard
plastic pipes, pipe fittings,plastic door & window,sheet and etc.
* Suitable for crushing and recycling tray, pipe and wide cut
sectional material, which avoids products predecomposition process
and reduces material degradation when using normal crusher machine.
Save labour, cut down labour strength and increase crushing and
recycling efficiency; * Using V-shape knife or flat knife, which
are wide use; cutting in scissor method, less energy consumption
and less shear heat, high cutting efficiency and granule size
evenly;
* The rotor is passed strict static and dynamic equilibrium which
ensure the smooth and steady operating of the machine.
Special Features:
A1.With unique"Claw type" designed blade base,blades material can
be customized according to customer requirements.
A2.Easy to operate and simple in replacement of cutter blades.
A3.Cutter blades are resistant to wear and tear.
A4.Removable screen mesh is easy to install or disassemble for
cleaning and changing colors.
A5.Motor with overload protection device.
A6.Using electrical control security design to ensure the safety of
your personnels.
A7.Standard voltage is 380V 50Hz 3Phase.(Can be customized
according to customers'request)
A8.Good adaptability and long service life.
A9.Noise reduction insulation for machine body or outside sound
insulation room is available by optional order.
Crushing material example:
SWP-400 powerful crusher can crush PVC pipe and corrugated pipe
with diameter less than 160mm, PE pipe with diameter less than 100,
wire trough, sheet, decoration board. Larger diameter plastic pipes
are easily broken after cutting.
SWP-500 powerful crusher and heavy crusher can crush PVC pipes
below 250mm in diameter, PE pipes under 160mm in diameter, PP pipes
under 110 diameter, PPR pipes and other plastic pipes and profiles.
SWP-600 powerful crusher and heavy crusher can crush plastic pipes
below 315mm in diameter. It can also be broken after larger
diameter and thicker pipes are cut in sections. For thicker plates,
bars, car bumpers, Large injection molded parts can also be broken.
For larger and larger calibers (such as below 800mm and below
1200mm), there are crushing solutions. You have any broken demand,
welcome to call us!

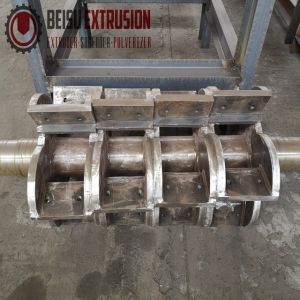

Details of PVC grinding machine:
Technical characteristics of Plastic PVC crusher:
- Specially designed feeding gate, increase the feeding quantity;
- V shape and multistep blades structure design will increase
different plastic crushing capacity
- SKD-II blades material will offer long working period for the
customer
- More thicker crushing chamber wall will lead to low noise
- Inverter AC motor and heavy duty bearings will bring the crusher
more long working period
- Every moving or rotating part of the crusher all with safety
devices to protecting the operators’ safety
Technical date:
| Type | SWP400 | SWP500 | SWP560 | SWP630 | SWP730 | SWP830 | SWP900 | SWP1050 |
| Knife diameter(mm) | 400 | 500 | 550 | 630 | 730 | 880 | 880 | 880 |
| Unmovable knife (pc) | 2 | 2 | 4 | 4 | 4 | 4 | 4 | 4 |
| Movable knife (pc) | 5 | 5 | 10 | 10 | 10 | 14 | 14 | 14 |
| S(mm) | 10 | 12 | 14 | 14 | 16 | 18 | 18 | 18 |
| Output ( kg/h) | 250—350 | 450—550 | 550—650 | 700—800 | 900—1000 | 1100—1200 | 1100—1200 | 1100—1200 |
| In size(mm) | 400×300 | 430×500 | 470×500 | 520×550 | 630×700 | 650×700 | 650×700 | 650×700 |
| Motor(kw) | 15 | 22 | 30 | 37 | 75 | 90 | 90 | 110 |
| Suction power(kw) | 3 | 4 | 5.5 | 5.5 | 7.5 | 11 | 11 | 11 |
| Weight(kg) | 1300 | 1900 | 2400 | 2800 | 4500 | 6500 | 6500 | 8500 |
| Size(mm) | 2200L 900W 1800H | 2200L 1050W 2100H | 2300L 1200W 2250H | 2400L 1300W 2300H | 2600L 1500W 2700H | 2700L 1580W 2800H | 2700L 1580W 2800H | 3000L 2100W 3800H |
