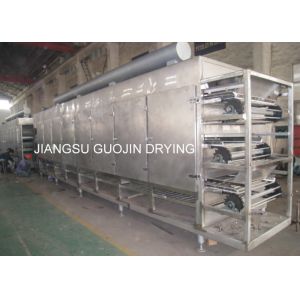

5.5KW Food Dehydrator Machine 32M2 With Conveyor Mesh Belt

Foodstuff Seaweed Conveyor Mesh Belt Dehydrator Machine

Raw materials are uniformly fed on the mesh-belt / plate belt by distributor. The mesh-belt / plate belt is drawn and moved inside the dryer by a driving device. The dryer is consisted of several independent drying sections. Hot air circulated separately and independently in each section. Part of damp air will be exhausted by exhausting fan. Hot air penetrates the belt from top to bottom or from bottom to top, and this will complete the heat and mass transfer process. Moving speed of belt is adjustable. The top and bottom circulation units can be freely equipped according to customer's requirement.

MPCD Mesh Belt Dryer Work Principle

1. The dryer consists of feeder, drying bed, heat exchanger, damp exhaust fan, etc.

2. When operation, air will be entered into dryer and heated through heat exchanger. Being adopted scientific and reasonable cycle method, the hot air will pass through raw materials to be dried on the bed and carry out iniform heat exchange. Under the action of cycle fan, the hot air steam inside each unit of the dryer will carry out hot air cycle. Final air with low temperature and high damp will be out. The whole drying process with stably and high effect will be finished.

MPCD Mesh Belt Dryer Technical Parameters

Type	MPCD-20	MPCD-25	MPCD-32	MPCD-36	MPCD-48	MPCD-60	MPCD-80
Loading area(m2)	20	25	32	36	48	60	80
Steam pressure(Mpa)	0.4-0.7
Steam consumption(kg/h)	150-300	180-375	240-480	270-540	360-720	450-900	600-1200
Drying period(Min)	20-200	60-600	100-1000(Stepless)
Evaporating Capacity(kg.H2O/h)	100-200	125-250	160-320	180-360	300-480	300-600	400-800
Power(kw)	5.5	5.5	5.5	5.5	14.2	15.2	15.2
Weight(t)	8	8	8.5	10	11	13	15
Overall Dimension LxWxH(mm)	8875*2408*3385	9875*2408*3385	11475*2408*3385	11475*2408*3385	14675*2408*3385	14675*2408*3385	15675*2408*3385

MPCD Mesh Belt Dryer Feature

1. Amount of air, heating temperature, time of material stay on thebelt and velocity of feeding material can be adjusted in order to obtain the best drying effect.
2. Equipment's configuration is very flexible. It can use the netlike beltwashing system and cooling raw material system.
3. Hot air can be circularly applied, the energy is greatly saved.
4. Unique air dividing device, it makes hot air distribute uniformly; this canguarantee products' quality.
5. Heating source can be selected from steam, conducting heat oil,
electricity, coal furnace and oil burner.

MPCD Mesh Belt Dryer Application

◆MPCD belt dryer is continuous-production drying equipment. The dryer being widely used for drying the piece, strip and particle shape materials in good ventilation. The dryer is suitable for de-watering fruit & vegetable which the moisture content is high and high drying temperature is not allowed. Drying speed of belt dryer is fast, evaporation strength is high and the product quality is good.
◆MPCD belt dryer is widely used and support for drying various kind of material such as pigment, fiber, fruit & vegetable, briquette etc.

MPCD Mesh Belt Dryer Show
