24 Trays CT-C-O Industry Hot Air Circulating Tray Dryer

24 Trays CT-C-O Industry Hot Air Circulating Tray Dryer

CT-C hot air circulating oven is equipped with axial flow fan and automatic constant temperature control system. The computer control system is also available. The thermal efficiency of our hot air circulation tray dryer is up to 70%. The biggest characteristic of this drying equipment is that part of the hot air circulates inside the oven, and the whole circulating process is closed, thus enhancing heat transfer and energy saving.

Product Working Principle of 24 Trays CT-C-O Industry Hot Air Circulating Tray Dryer

This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

Product Feature of 24 Trays CT-C-O Industry Hot Air Circulating Tray Dryer

Most hot air is circulated in the oven. The Heat efficiency is high and the energy is saved. By using the forced ventilation function, there are adjustable air distribution plates inside the oven. The materials can be dried uniformly. The heating source might be steam, hot water, electricity and far infrared. With a wide selection. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and is versatile drying equipment.

More Details of 24 Trays CT-C-O Industry Hot Air Circulating Tray Dryer

1. Options of heat source: steam, electricity, or far infrared, or both steam electricity.

2. Drying temperature: steam heating 50-130 °C, Max.140 °C.

3. Electricity and far infrared:50-300 °C .Automatic control system and computer control system on request.

4. Commonly used steam pressure 0.2-0.8Mpa (2-8 bar).

5. For CT-C-I, electric heated, rated power consumption: 15Kw, real consumption: 5-8Kw.

6. The special requirements should be indicated at the time of order.

7. Please consult as for any special requirements.

8. For operation temperature of over 140 °C or less than 60 °C, please indicate when order.

9. The ovens and baking trays made by our factory are uniform in dimensions, and can be exchanged each other.

10. Baking plate dimensions: 460*640*45mm

Technical Parameters of 24 Trays CT-C-O Industry Hot Air Circulating Tray Dryer

Model	Field standard model	drying capacity(kg/batch)	Radiator area(m3)	Steam consumption(kg/h)	Electric heating power(kw)	Fan Power(kw)	Overall dimensions(WxDxHmm)	Equipped drying cart(set)	Drying pallet tobe equipped(pc)	Total weight(kg)
CT-C-O	RXH-7-C	60	10	10	6	0.45	1380x1200x2000	1	24	820
CT-C-I	RXH-14-C	120	20	18	15	0.45	2260x1200x2000	2	48	1580
CT-C-II	RXH-27-C	240	40	36	30	0.45x2	2260x2200x2000	4	96	1800
CT-C-IIA	RXH-27-C	240	40	36	30	0.45x2	4280x1200x2270	4	96	1880
CT-C-III	RXH-41-C	360	80	60	45	0.45x3	2260x3200x2000	6	144	2100
CT-C-IIIA	RXH-41-C	360	80	60	45	0.45x3	3240x2200x2000	6	144	2210
CT-C-IV	RXH-54-C	480	120	80	60	0.45x4	4280x2200x2270	8	192	2800
CT-I	RXH-14-B	120	23	20	15	1.1	2480x1200x2375	2	48	1220
CT-II	RXH-27-B	240	48	40	30	1.5	2480x2200x2438	4	96	1530
CT-III	RXH-41-B	360	72	60	45	2.2	3430x2200x2620	6	144	2110
CT-IV	RXH-54-B	480	96	80	60	3	4460x2200x2620	8	192	2300

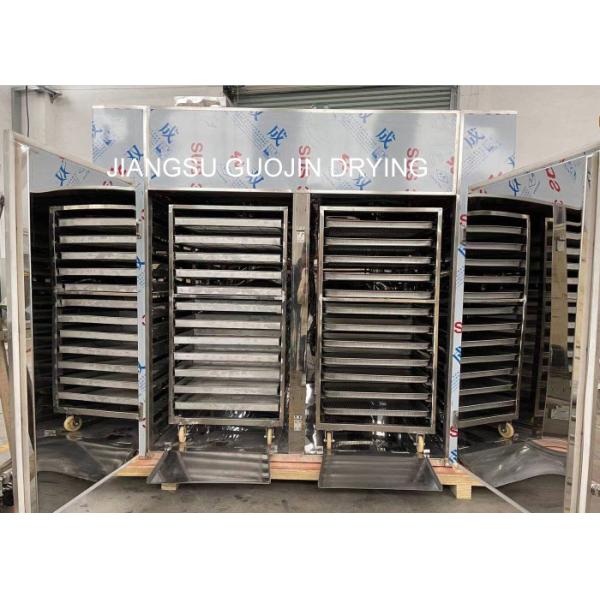

Product Show of 24 Trays CT-C-O Industry Hot Air Circulating Tray Dryer
