Labeling Application Laminated Packaging Film
Description:
It is a high-strength multi-layer composite film,It is made of HDPE
as the base material, adding plasticizer, plasticizer, stabilizer,
antioxidant, UV absorber, toughener and other additives through
multi-layer co-extrusion blow molding into embryos, and then by
multiple pull Stretching, then rotary cutting into a film substrate
with a horizontal and vertical distribution of 45 °, and finally
through cross-compositing. Due to its cross-stacking structure is
different from ordinary single-layer or multi-layer film, it has
the thermal stability, dimensional stability, two-way tear
resistance, two-way uniform tension and high elongation which are
not available in traditional films.
Phameter:
| NO. | Item | Performance |
| | SDM-30 | SDM-60 |
| 1 | Tensile Property | Tensile Strength/Mpa ≥ | 30 | 50 |
| | MaxF/(N/50mm) ≥ | 200 | 300 |
| | Elongation as MaxF/% ≥ | 200 |
| | Elongation at break/% ≥ | 250 |
| 2 | Sample number of no broken tested by free-falling dart method ≥ | 8 |
| 3 | Tear Strength(Nail Shank)/N ≥ | 60 |
| 4 | Angle Tear Strength/N ≥ | 25 |
| 5 | Thermal Stability | 120 ℃,10min, No bulb, No deformation |
| 6 | Cryogenic Flexibility ℃ | -35℃, No fissure, No delamination |
| 7 | Thermal Ageing | Appearance | No bulb, No deformation |
| | Subsequent MaxF/% ≥ | 80 |
| | Elongation at MaxF/% ≥ | 200 |
| | Elongation at break/% ≥ | 200 |
| 8 | Artificial Weathering | Appearance | No bulb, No deformation |
| | Subsequent MaxF/% ≥ | 70 |
| | Elongation at MaxF/% ≥ | 180 |
| | Elongation at break/% ≥ | 180
|
Production Process:
OUR THREE STEP PROCESS FOR MANUFACTURING HIGH STRENGTH, DURABILITY,
AND QUALITY CROSS LAMINATED FILM.
Step 1: FILM BLOWING

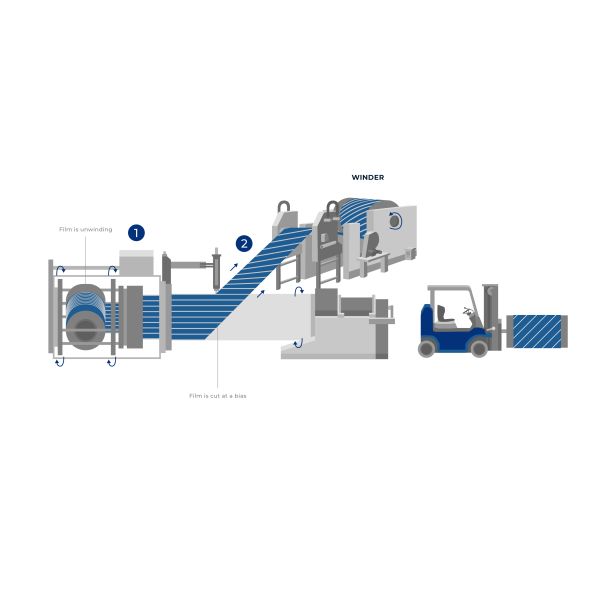

Step 2: Spiral Cutting
Advantages:
- Excellent dimensional stability. It can fix its own size without
deformation.
- Two-way tear resistance. The vertical and horizontal mesh structure
effectively solves the phenomenon of easy wrinkling and drumming
after construction
- Performance against UV radiation. The use of outdoor high
temperature conditions is guaranteed.
- High strength and high elongation performance. Excellent resistance
to high and low temperature.
- Unique puncture resistance, self-healing and continuous tear
resistance and excellent nail water tightness.
|
Application:
Widely used in anti-child tear packaging (MediCRREO); explosive
packaging;
chemical packaging; Blister Guard packaging; export merchandise
packaging bags;
building waterproof materials, postal tag, car airbag label,
aviation tag Bulletproof
clothing, etc.
FAQ:
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you provide samples ? is it free or extra ?
A2: Yes, we could offer A4 sample for free charge but if you need
in roll,
we can offer 100-200m/roll for free, but shipping cost need you to
paid.
Q3: How long is your delivery time?
A3: Depends on your quantity. Generally it is 15-20 days for 20GP
container.
Q4: How to pay for your goods?
A4: By L/C, by T/T (30% deposit before production, 70% balance
before loading).
