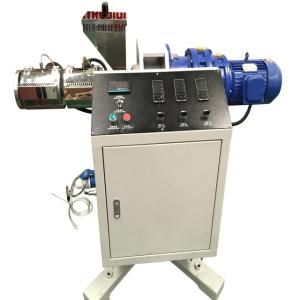

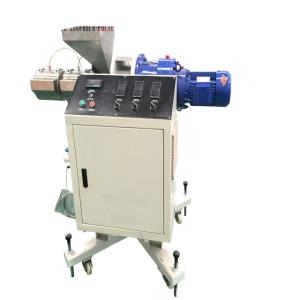

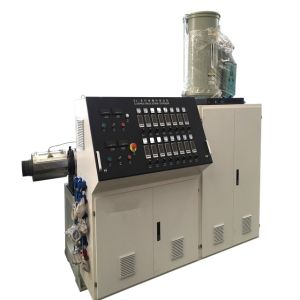

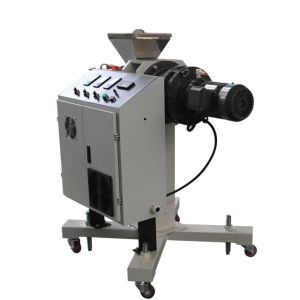

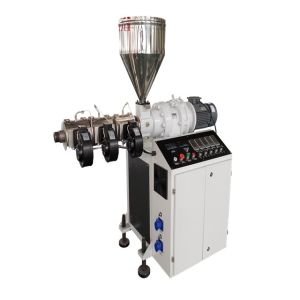

    Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine

    Ask Lasest Price
    Brand Name : BEISU
    Certification : CE
    Supply Ability : 150 Set/Sets per Year
    Price : $18,000.00
    • Product Details
    • Company Profile

    Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine

    Application of single screw extruder: The single-screw extruder is mainly used for extruding soft and hard PVC, polyethylene and other thermoplastics. It can process a variety of plastic products, such as blown film, extruded tube, pressing plate, drawing ribbon, etc., and can also be used for melt granulation. The plastic extruder has advanced design, high quality, good plasticization and low energy consumption. It adopts involute gear transmission, which has the characteristics of low noise, stable operation, large bearing capacity and long life.
    The usege of single screw extruder in various fields: A1 single screw pipe extrusion: suitable for PP-R pipe, PE gas pipe, PEX cross-linked pipe, aluminum-plastic composite pipe, ABS pipe, PVC pipe, HDPE silicon core pipe and various co-extruded composite pipes. A2 Single screw plate and sheet extrusion: suitable for the extrusion of PVC, PET, PS, PP, PC and other profiles and plates. Extrusion of various other plastics such as silk and rods. A3 Extrusion of single-screw profiles: Adjusting the speed of the extruder and changing the structure of the extruder screw can be applied to the production of various plastic profiles such as PVC and polyolefins. Modified granulation: It is suitable for blending, modifying and enhancing granulation of various plastics.
    Machine Model
    Capacity
    Screw Rotating Speed
    Main Motor Power
    SJ-25
    5-10kg/h
    10-110r/min
    2.2kw
    SJ-30
    10-20kg/h
    10-110r/min
    3kw
    SJ-35
    20-30kg/h
    10-90r/min
    4kw
    SJ-45
    30-50kg/h
    10-90r/min
    7.5/11kw
    SJ-50
    50-80kg/h
    10-90r/min
    15-22kw
    SJ-65
    80-120kg/h
    10-90r/min
    30-45kw
    SJ-75
    120-150kg/h
    10-90r/min
    37-75kw
    SJ-90
    150-200kg/h
    10-90r/min
    45-110kw
    SJ-120
    200-300kg/h
    10-90r/min
    75-160kw
    SJ-150
    300-400kg/h
    10-90r/min
    110-185kw
    SJ-200
    500-600kg/h
    10-90r/min
    132-280kw
    The core patents of Single screw extruder:
    A1: Extruder screw It is a key component of plastic transportation and plasticization. Due to its rotation, the plastic is pushed forward to achieve compaction, melting and mixing. The thread is composed of different functional parts to achieve better conveying, compaction, mixing, plasticizing effect and high output. The screw material is made of high-quality nitrided steel (38CrMoALA), and is nitrided and finely ground. It has high corrosion resistance and wear resistance, and has a long service life. A2: Extruder head flange joint It is part of the joint and barrel and is heated by a heating ring to prevent the molten plastic from cooling. A3: Extruder drive system The transmission system will evenly rotate the screw with the necessary torque under the selected process conditions to complete the plasticization and transportation of the plastic to the screw. In order to meet the production requirements of various specifications of plastic products, the screw should have different speeds. The machine uses a variable frequency motor to directly drive the gearbox through the coupling, and uses a speed regulator to achieve speed regulation, so that the screw speed can be smoothly adjusted within the speed range, and the screw speed can be directly adjusted. It is read by the tachometer on the control panel. It can also be read directly on the governor.

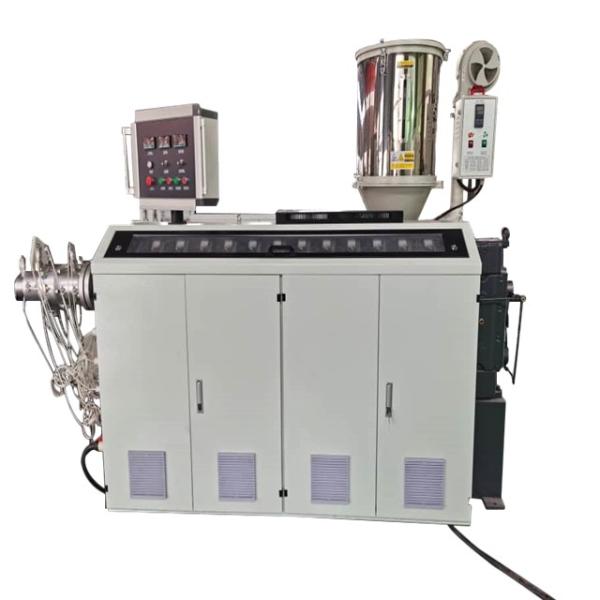

    Quality Single Screw 25mm 20kg/H Ppr Pipe Extrusion Machine for sale
