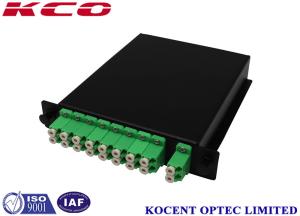

LC/APC Duplex 2*16 G657A2 Optical Fibre PLC Splitter LGX Box

Steel LGX box LC/APC Duplex 2*16 Optical Fibre PLC Splitter

Description:

- This LGX box is made by steel tape or Aluminum alloy tape, it use to install the fiber optic plc splitter, and can intall on the 19 inch rack mount box for dataroom.

- Fiber optic PLC (Planar lightwave circuit) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

- The standard LGX mental box housing provides a plug-and-play method for integration in the network, which eliminates any risks during installation.

- It eliminates the need for splicing machines on the field and there is no need for skilled personnel for deployement.

- With small size design, it can save more space for your cabinet.

- Standard 19'' Rack Mount Type Chassis Box, it copy design from Media Converter Chassis Box to save more space and easier to operate.

- Each small LGX box maximum can install 1pcs of 1*8 fiber optic splitter with SC type connector or 2*16 fiber optic splitter with LC type connector.

- Each Splitter Chassic Box can install maximum 16 pcs of small LGX box. Also can install 8pcs, 10pcs, 12pcs or 14 pcs of small LGX Box as End-user request.

- The box can make by steel tape with thickness 0.8mm, 1.0mm and 1.2mm. Or also can make by Aluminium Alloy material.

Technical Data:

- Connectors loss: less than 0.2dB
- Return loss: ≥50dB

- Connector life span: ≥1,000 times

- Environmental temperature: -5℃~+60℃
- Operating temperature: -5℃~+40℃
- Relative humidity: ≤85 %( +30℃)
- Atmosphere pressure: 70~106Kpa
- Insulating resistance: ≥2000MΩ/500V
- Voltage resistance strength: >3000V(DC)1 min non-puncture, no are-over

Product picture:

Specifications:

Relation products:

OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
