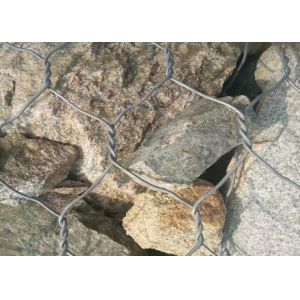

Hot Dipped Galvanized 80*100mm 2m X 1m X 1m Galvanized Stone Wall
Gabion Mesh Cage Gabion Mesh Cages
Gabion Mesh Cage introduction:
Gabion Wire Mesh is also called heavy hexagonal wire netting. It is
made from high grade Carbon steel iron wire, heavy zinc coated
wire, PVC coated wire through twisting and braiding by machine, It
is mainly used in supporting and protecting side slope and basis
pit,mountain rock hanging mesh, green guard rail netting on side
slope, railway guard netting. Heavy Hexagonal wire netting also can
be worked into stone cage or stone cage cushion, and used in
reservoir , river or dyke for closure.
1) Gabion Mesh Cage Material:
electro galvanized wire, hot-galvanized wire, heavily galvanized
wire, pvc-coated wire, galfan wire .
details specification for gabion
Gabion mesh wire: 2.0mm, 2.5mm, 2.7mm, 3.2mm, 3.4mm, 4.0mm.
Gabion selvedge wire diameter: 2.5mm, 2.7mm, 3mm, 3.4mm, 4.0mm.
Hole size: 60x80mm,80x100mm,100x120mm,120x150mm, etc.
Gabion Tie wire/lacing wire : 2.2mm, 3% or 5% of total weight
Gabion size: 1x1x1m, 1.5x1x1m,2x1x1m, 2x1x0.5m, 3x1x1m, 4x1x1m, as
your request
Diaphragm: 1 diaphram per meter.
2) Gabion Mesh Cage applications:
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
3) Gabion Mesh Cage features:
An economy. Just a stone into a cage
Construction is simple, no special skills.
Strong to withstand natural damage and corrosion resistance and
resistance to adverse climate impacts.
4) Gabion Mesh Cage Specification:
Gabion box (mesh size):
80*100mm
100*120mm | Mesh Wire diameter | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
| Edge wire diameter | 3.4mm | zinc coating:60g,245g, ≥270g/m2 |
| Tie wire diameter. | 2.2mm | zinc coating:60g,≥220g/m2 |
Gabion mattress(mesh size):
60*80mm | Mesh Wire diameter | 2.2mm | zinc coating:60g, ≥220g/m2 |
Gabion mattress(mesh size):
60*80mm | Mesh Wire diameter | 2.2mm | zinc coating:60g, ≥220g/m2 |
| Edge wire diameter | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
| Tie wire diameter. | 2.2mm | zinc coating:60g, ≥220g/m2 |
Special sizes Gabion
are available | Mesh Wire diameter | 2.0-4.0mm | superior quality,competitive price and
considerate service |
| Edge wire diameter | 2.7-4.0mm |
| Tie wire diameter. | 2.0-2.2mm |
| Specifications offered |
| Length | Width | Height | Diaphragm | CUM | The tolerance |
| M | M | M | Unit | M3 | |
| 2 | 1 | 0.3 | 1 | 0.6 | |
| 3 | 1 | 0.3 | 2 | 0.9 | |
| 4 | 1 | 0.3 | 3 | 1.2 | length+-3% |
| 2 | 1 | 0.5 | 1 | 1 | width+-5% |
| 3 | 1 | 0.5 | 2 | 1.5 | height+-5% |
| 4 | 1 | 0.5 | 3 | 2 | |
| 1 | 1 | 0.5 | 0 | 1 | Hole size |
| 1.5 | 1 | 1 | 0 | 1.5 | 60x80mm |
| 2 | 1 | 1 | 1 | 2 | 80x100mm |
| 3 | 1 | 1 | 2 | 3 | 100x120mm |
| 4 | 1 | 1 | 3 | 4 |
|
5) Gabion Mesh Cage Package:
Gabion box folded, then packed in pallets or bulks, or as your
requirements.
