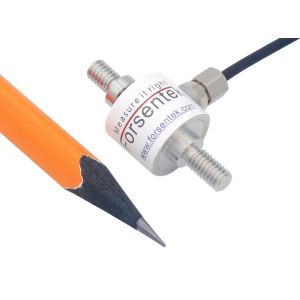

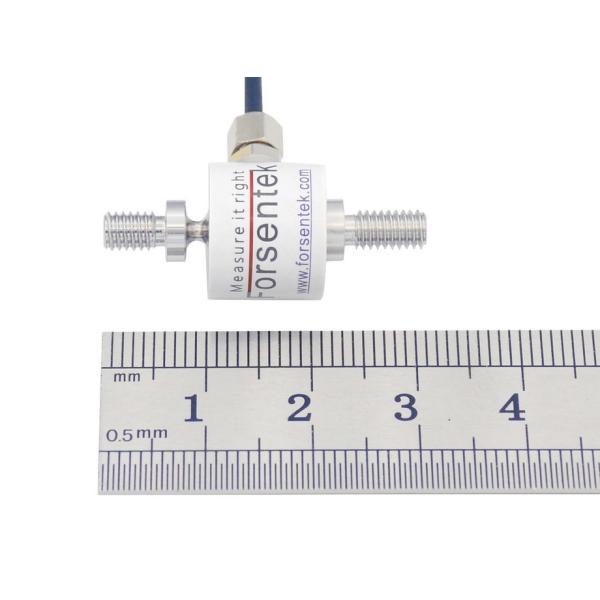

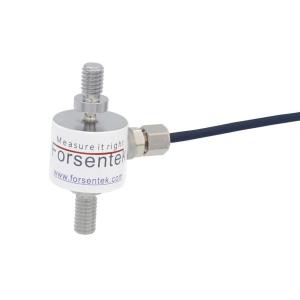

Miniature force transducer 50N 100N 200N 500N tension and
compression sensor
Miniature size Inline force sensor FLN is made of stainless steel
based on strain gauge technology with mV/V output,in-line load cell
offers 50N / 100N / 200N / 500N / 1kN / 2kN / 3kN / 5kN eight
measuring ranges to choose from. M8/M4 threaded rods located on
both end can be used to install attachments,such as eye bolt,bolt
adapter,etc.,to fit requirement of different applications.In-line
force sensor FLN can be used for both tension and compression force
measurement,compact size makes it applicable for force measurement
applications where mounting space is limited.
Dimensions(Unit in "mm")
| Ordering code | Measurement Range | Force direction |
| FLN-5kg | 0-50N / 0-5kgf | Tension/compression |
| FLN-10kg | 0-100N / 0-10kgf |
| FLN-20kg | 0-200N / 0-20kgf |
| FLN-50kg | 0-500N / 0-50kgf |
| FLN-100kg | 0-1kN / 0-100kgf |
| FLN-200kg | 0-2kN / 0-200kgf |
| FLN-300kg | 0-3kN / 0-300kgf |
| FLN-500kg | 0-5kN / 0-500kgf |
Specifications
| Capacity | 50N / 100N / 200N / 500N / 1kN / 2kN / 3kN / 5KN
5kg / 10kg / 20kg / 50kg / 100kg / 200kg / 300kg / 500kg
10lb / 20lb / 45lb / 110lb / 220lbs / 450lbf / 660lb / 1.1klb |
| Rated output | 1.0mV/V |
| Excitation | 3-10 V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±1% R.O. |
| Hysteresis | ±1% R.O. |
| Nonrepeatability | ±0.5% R.O. |
| Creep(5min) | ±0.2% R.O. |
| Safe overload | 120% F.S. |
| Ultimate overload | 150% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./oC |
| Temperature shift span | ±0.05% R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±100 ohms |
| Insulation resistance | >5000M ohms |
| Ingress protection | IP66 |
| Material of element | Stainless steel |
| Cable | Ø2*3000mm 4-core shielded |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Instruction of load cell output:
Load cell output: = (Power supply * Rated output) * Load / Capacity
Rated output of Miniature Traction Compression Force Sensor FLN is
around 1.0mV/V.
Power supply of Miniature Push Pull Load Cell FLN is normally
within 3-12V.
Load / Capacity is within 0-1.
So the output range of Miniature Inline Load Cell FLN is normally
within -12mV...+12mV for tension/compression force measurement.
Example: Miniature Push Pull Load Cell FLN-50kg with 1.0mV/V
sensitivity powered by 5V DC,the output range is -5mV...+5mV.
A signal conditioner can be used with the load cell to deliver
-5~5V, 0-10V or 4-20mA output.
Example one: Miniature Tension Compression Sensor FLN-20kg working
with -10-10V amplifier, the Force-Voltage relationship will be
0-20kg compression load VS 0-10V output, 0-20kg tension load VS
0-(-10V) output, which is linear regardless of the error, 1V output
corresponds to 2kg compression load, -2V output corresponds to 4kg
tension load, and so on.
Example two: Miniature Traction And Compression Load Cell FLN-10kg
working with 4-12-20mA amplifier, the Force-Current relationship
will be 0-10kg compression load VS 12-20mA output, 0-10kg tension
load VS 12-4mA output, which is linear regardless of the error,
12.8mA output corresponds to 1kg compression load, 8mA output
corresponds to 5kg tension load, and so on.
