Natural Gas Dual Diaphragm 200DM IMPCO Gas Mixer

Name: Natural Gas Dual Diaphragm 200DM IMPCO Gas Mixer
Brand: IMPCO
Price: 1 USD

Ask Lasest Price
Brand Name :	IMPCO
Model Number :	200DM
Certification :	UL
Price :	Depending on quantity
Payment Terms :	T/T
Supply Ability :	1200pcs per 8weeks
Delivery Time :	8 weeks

Add to Cart

Product Details
Company Profile

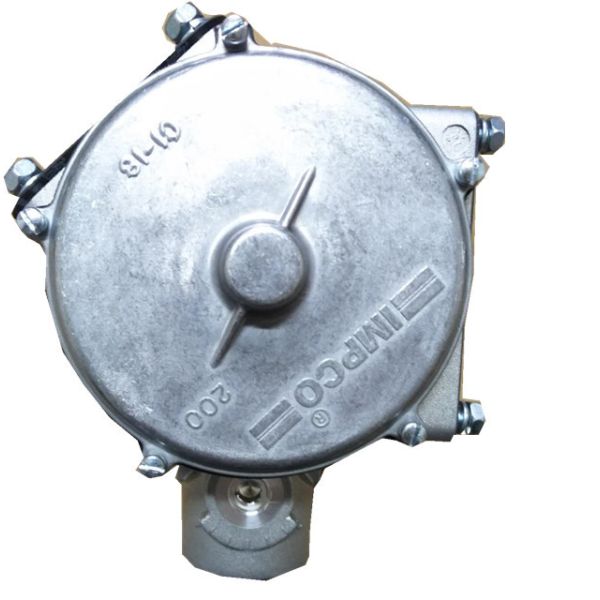

Natural Gas Dual Diaphragm 200DM IMPCO Gas Mixer

LPG Or Natural Gas Mixer , Dual Diaphragm , Up To 217.7kW , 1/4” Balance Port At The Air Inlet.

Model 200DM Mixer is a dual diaphragm air-valve mixer.This unit is available for LPG Vapor, Natural Gas applications. The mixer provides a convenient 1/4” balance port at the air inlet, and a slow speed “idle” adjustment.

SPECIFICATIONS
Fuel Type	LPG Vapor, Natural Gas, or Digester/Landfill Gas (550 - 2,500 BTU)
Inlet Pressure	-1.5” w.c. (-0.37 kPa)
Operating Temperature Range	-40ºF to +250ºF (-40ºC to 121ºC)
Mounting Position	Vertical
Diaphragm Material	Hydrin (Standard), Silicone (Optional)
HP/kW Rating	292 hp (217.7 kW) @ 468 CFM (221 L/s) and 2,500 BTU per cubic foot with 2.0” Hg manifold depression
