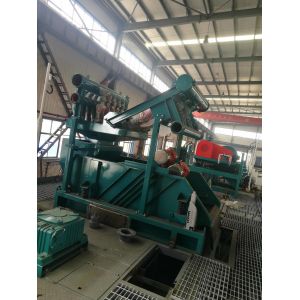

0.45MPa Solids Control 50m³/H HDD Drilling Mud Cleaner

Well Drilling Mud Process Hunter Series Mud Cleaner At Aipu Solids Control

CBM exploration drilling mud cleaner is the integration of desander cone, desilter, and bottom shaker. It is 2nd and 3rd phase solids control equipment. Set behind shale shaker or vacuum degasser if there is, while ahead of decanter centrifuge.

How To Select Mud cleaner

Mud flow: Mud cleaner mud flow is decided by desander & desilter size and qty. The desander cone normally choose 10 inch size and desilter cone choose 4 inch size. Once cone size is fixed, the mud flow will be fixed depending on cone qty.
Bottom shaker: The bottom shaker will work to dry solids out of desander & desilter cone nozzle. The larger shaker deck will help for dry product and smaller shaker deck will save cost.
Electrical standard: Different area may require different standard like IECEX, ATEX, UL, DGMS, etc. Before order any equipment, please confirm electrical standard.
Customized design: Cone size and qty can be customized design to reach different mud flow and performance.

Features Of AIPU Mud Cleaner

Shale Shaker & Desander & Desilter 3 in one mud cleaner for 2nd and 3rd phase cleaning for small footprint.

Both desander & desilter cone material is polyurethane (PU) for hard-wearing.

Italy brand motor, standard brand is OLI, Martin or Itvibras motor as option

Max G force reaches to 7.5G, G force adjustable depending on drilling mud conditions

Heat treatment of shaker deck for steady working, Stainless Material for shaker deck bottom

Heavy anticorrosive painting on shaker service, 3 layer painting.

Wedge type screen and hook strip screen both available to suit client requirement.

Mechanical deck angle adjustment for steady and reliable performance.

Standard options: IECEX, ATEX, UL, DGMS, CE, Gost.

Top brand of electrical control panel, Siemens/Scheneider brand main components

Composite material screen available for longer service life.

Shaker screen is sent to US for API RP 13C compliance test. The only one supplier in China with API RP 13C compliance test report.

Working process flow of mud cleaner

Mud cleaner is the second stage solid control equipment used for drilling fluid circulation system, HDD, CBM and Geothermal environmental waste mud cleaning system.

The weighted mud flows to the inlet head section of the desander and/or desilter entering the hydrocyclones for separation of particles. Mud leaving the underflow is further screened with fine mesh to separate larger particles allowing only barite-size particles to pass through the screen.

Why we should use mud cleaner in the solid control system?

As we all know that the main function of solid control system is to separate the drilling solids into water and mud, while in the whole working flow, we should use some equipment to separate the drilling solids into sand and mud firstly. Generally, we could use mud desander and mud desilter to solve this problem. However, mud desander and mud desilter are two items, which will increase the cost and time to use these two items.

Therefore, we designed the drilling mud cleaner to solve this problem. With the help of mud cleaner, we could separate the drilling solids into different sand and mud easily, and it could be handled easily also. That’s why mud cleaner has been popular used in drilling fields by almost all of the drilling service companies in home and overseas

Technical parameters of Aipu hunter mud cleaner

AIPU Solids Control is one of the top supplier for HDD mud recycling system including mini shale shaker and other equipment. All equipment is strictly built as per API Q1 quanlity control system and all equipment tested during and after manufacture.

Please check above technical parameters for your reference. And some configuration is customizable. For any question or demand, just feel free to contact AIPU solids. You will get a professional proposal very soon.

AIPU Solids control is professional manufacturer on solids control equipment and system. The solution for drilling mud process as well as the drilling waste management, and the oli sludge treatment system.

All items can be used in oil and gas drilling, the oil sludge treatment, the HDD mud recycling, the civil construction micro tunnelling, the piling and so on. The main equipment inlcuding solids control system, shale shaker, mud cleaner, centrifgue decanter, degassers, agitator, mud gun, centrifugal pumps, mud tank, cuttings dryer, the mud cooling system and so on.

Pleased to say AIPU products have been delivered to many regions and conturies around the world. Including Germany, Russia, USA, UK, Kuwait,  UAE, India, Indonesia, Malaysia, Singapore, Taiwan, and so on.

Our hot sales product Hunter series shale shaker is rather popular with all of our clients. The Hunter-MG and Hunter-D shale shakers can be configured as linear motion, BEM or the dual motion. For the decks, they can be double deck. For the base, they can be dual tandem or triple tandem

Another hot sales products Hunter seires mud cleaner is maintained all the good features of Hunter series shaker. And the hydrocylones are all made of high quality polyurethane. Another feature is the cones are interchangeable with famous brand ones.

Besides the shale shaker and mud cleaner, there are centrifugal pumps, mud agitators and so on equipment appreciated by our clients. New innovated mud cooling system for land oil drilling is a patented products used in SINOPEC drilling site. The performance surprised end users.
