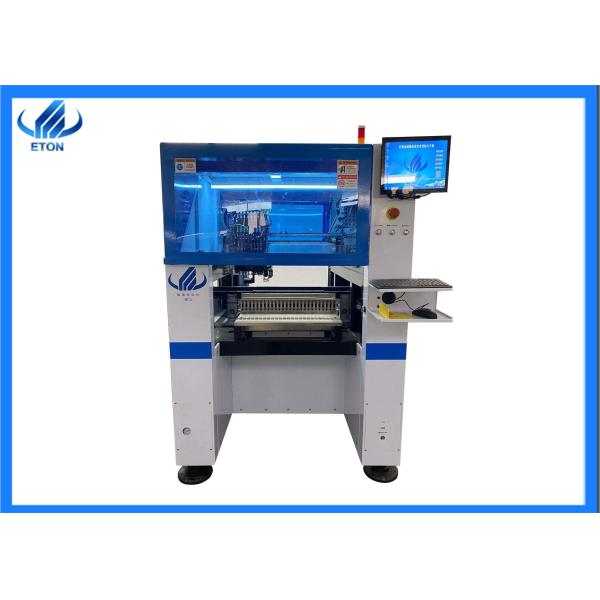

    10 Nozzles 32 Feeders 35000 CPH Pcb Assembly Machine

    Ask Lasest Price
    Brand Name : ETON
    Model Number : RT-1
    Certification : CE , ISO , CCC
    Price : USD 33,000.00
    Payment Terms : T/T
    Supply Ability : 50 Unit per mouth
    Delivery Time : 15-30 days
    • Product Details
    • Company Profile

    10 Nozzles 32 Feeders 35000 CPH Pcb Assembly Machine

    Factory prize electronic products machinery pcb assembly machine


    Main Details:

    Model numberRT-1
    Dimension1200*1930*1750mm
    PCB
    PCB size50*50---400*350mm
    PCB thickness0.1---6mm
    Vision system
    Mounting speed30000--35000 CPH
    Mounting mode

    Group picking and separate placing,
    Separate picking and separate placing

    CCD resolution0.01mm
    Feeders station32
    Nozzles10
    Mounting height<=25mm
    No of camera2 sets of imported camera
    Components space0.2mm
    XYZ axis drive wayMagnetic linear motor
    Feeding wayElectric feeder with double motor



    3M

    A.Mounting components:LED,capacitors,resistor,shaped components


    B.Main Features:


    1. Control System: Ball screw and servo motors

    2. Vision system: one down-looking camera. one CCD cameras and one HD camera.

    3. 10 placement heads: can pick up and calibrate components at one time.

    4. Up to 32 feeder stations: Standard feeder

    5. computer main board: the monitor, key board and mouse will ship with machine.

    6. Video tutor: make you operate machine easily

    7. Free to upgrade software: and provide technology support for life.



    A whole SMT line:

    Semi-automatic line and its fully automatic line scheme for you to choose
