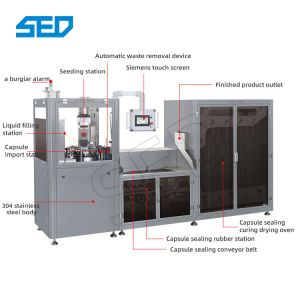

Medical Fish Oil Automatic Liquid Capsule Filling Machine

Medical Fish Oil Automatic Liquid Capsule Filling Machine

Product Parameters of Liquid Capsule Filling Machine

Automatic hard-capsule liquid filling machine and sealing linkage line equipment are the first in-line equipment of our company based on our own multi-year capsule filling technology, self-developed design and production of hard capsule filling liquid and sealing. And exclusive proprietary intellectual property rights and a number of technical invention patents, the device can complete the filling of hard capsules (solution, suspension, microemulsion or hot solution) and sealing the capsule cap joint to make the capsule The contents are sealed in the process of packaging, transportation and use, which improves the stability and safety of the product. It can provide new modes of administration, improve the drug delivery problems of many drugs, and fill the domestic and foreign pharmaceutical and health care. The blank of hard capsule filling liquid and sealing technology in the product industry is also the gospel of many pharmaceutical companies and health care products factories for the development of some (highly active drugs, poorly soluble drugs) preparation products.

Product performance, features:

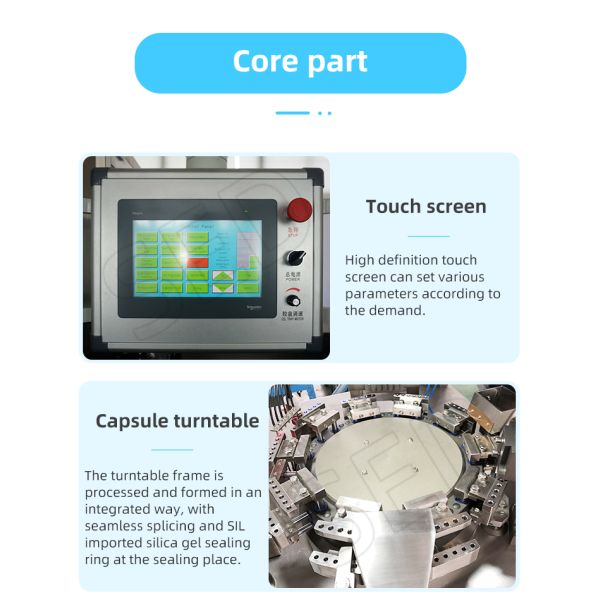

1. The equipment adopts man-machine interface control system, which automatically lacks capsules and lacks material alarm.

2. The capsule feeding machine has a vacuum positioning and separating mechanism, so that the probability of the capsule is over 99%. The fiber is automatically detected, and the capsule is missing in the upper and lower mold holes.

3. High-precision ceramic pump and servo motor dosing system are adopted to control the difference of the loading amount to about ±2%, and the dosage is accurate.

4. The sealing mechanism adopts the servo motor lifting device, which can be used to jog and fine-tune the rubber wheel to achieve the best effect of the sealing layer.

5. The sealing liquid tank is designed as a sealing structure, and is equipped with a heating and heat preservation system to ensure the viscosity of the glue liquid and effectively extend the glue liquid period.

6. The finished dry curing mold adopts hanging type and free rotation structure, which effectively improves the disassembly and unloading cleaning time.

Hangzhou Shengde Machinery Co.,Ltd. (Short for “SED Pharma”) was founded in 2012. It is a comprehensive pharmaceutical equipment supplier to provide pharmaceutical machinery, blood collection tube machinery, water treatment equipment, clean room facilities, pharma engineering for the pharma and biotech industry in the world. Since its foundation, We have supplied more than 600 equipment and systems for 180 pharmaceutical companies across over 20 countries and regions in the world which have been widely applied in the fields of liquid and lyo injectables, chemical API, bioengineering and pharma packaging, etc.

We focus on studying medicine manufacture science and process equipment manufacture science, practices medicine process knowledge integration with pharma equipment knowledge. We have been approved with all the international regulatory certifications like ISO9001, CE, BV, etc. To commit to our mission “Providing solutions to Pharmaceutical Industry”, We cooperates closely with well-known scientific research institutions and pharmaceuticals industry designing institutes to provide the most reasonable project design, the best quality equipment and the customized service to different pharmaceutical / medical factories from different markets.
