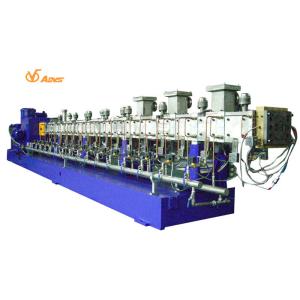

YSE65 Counter rotating twin screw Polymer devolatilization extruder
for reactive extrusion
Our YSE series Counter-rotating Twin Screw Extruders are
successfully used in processes such as devolatilization,latex
coagulation,dewatering,mixing and reactive extrusion in the field
of chemical engineering,food and pharmacy.
This machine is mainly used for high viscosity material reaction
extrusion.
Technical data
| Type | YSE65/80-500 |
| Screw Diameter | 50mm/65mm (Intermeshing & Non intermeshing for your choice) |
| L/D | 80:1 |
| Screw Speed | 500rpm |
| Motor Power | 132KW |
| Air vent | 3 |
| Liquid injecting vent | 9 |
| Gas feeding vent | 3 |
| Barrel | Openable, can be open completely |
Advantages of our counter rotating devolatilization extruder
High Torque: which used in high viscosity material processing, meet high output
production requirements
Long use-life:The gearbox can reach 72000 h (10 years) or more.
Long L/D:There can be a number of vents and hoppers,which is applicable to
the high devolatilization process,also it can apply in the reactive
extrusion to achieve more different materials mixing reaction.
Custom-made design:the two screw shaft Intermeshing or Non
intermeshing structure for your choice.
