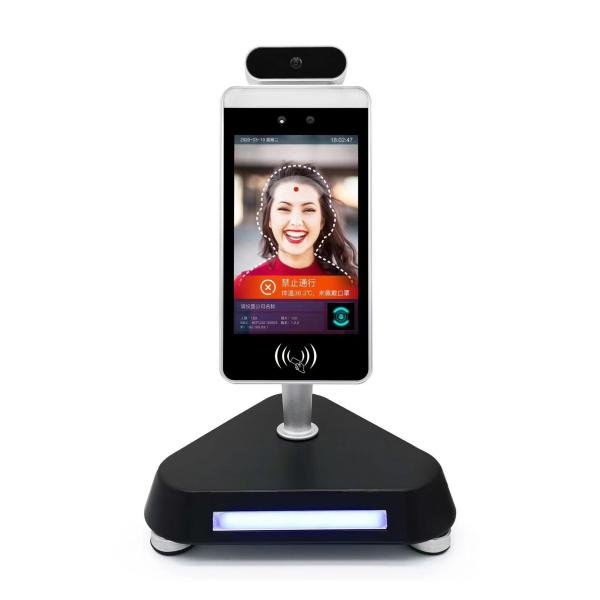

Face Capacity Dual Ai Camera 8 '' Lcd Face Recognition Device With
No Contact Infrared Thermometer When Wearf Face Mask
| Processor | Dual Core Processor(Hi3516D V300)+ 1G memory + 16G flash |
| Operating system | Linux Operating system |
| Storage | Support TF card storage |
| Viewing angle | Vertical viewing angle: 30°; Horizontal viewing angle: 30° |
| Sensor | 1/2.8" Progressive Scan CMOS(IMX307) |
| Lens | 6mm |
| Speaker | voice playback content can be customized |
| Temperature measurement performance | Please find the notes on last page |
| Measurement range | 16℃ - 40℃ (Indoor without wind) |
| Temperature measurement Lens | European original lens |
| Sensors type | Medical-grade European imported sensors |
| Measurement accuracy | ±0.3℃ |
| Temperature resolution | 0.1℃ |
| Temperature measurement distance | ≤30cm |
| Measurement response time | 300ms |
| Performance | |
| Recognition height | 1.2~2.2 meters, angle adjustable |
| Recognition distance | 0.5~1.5 meters, depends on lens |
| Recognition time | Less than 0.5 seconds |
| Storage capacity | 160,000 capture records |
| Face capacity | 24000pcs |
| Screen brightness | ≥400 cd/m2 |
| Interface | |
| Switching output | 1 way switch output, other GPIO port can be customized |
| Network interface | 1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can
be customized |
| Wiegand interface | 1ch Wiegand interface input/output |
| RS485 | There is an RS485 interface on the PCB board, but no lead |
| USB interface | 1ch USB interface |
| Camera | |
| Camera | Dual cameras |
| Effective pixels | 2MP, 1920*1080 |
| Min Illumination | Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR) |
| SNR | ≥50db(AGC OFF) |
| WDR | 120db, ISP algorithm face partial exposure |
| Function | |
| Web side configuration | support |
| remote upgrade | support |
| Regular | |
| Working humidity | 0~90% relative humidity, no condensation |
| Salt spray | level Rp6 or above |
| Antistatic | contact ±6KV, air ±8KV |
| Power | DC12V/2A , 14.4W(MAX) |
| Column aperture | 36mm |
| Equipment size | 260 (L) * 136 (W) * 26 (T) mm |
| Screen size | 8 inches IPS HD screen |
| Weight | 1.7 kg |
Precautions:
- The temperature measuring device should be used in a room with a
room
temperature between 10 ℃ -40 ℃. Do not install the temperature
measuring
device under the vent, and ensure that there is no heating source
within 3
meters;
- Personnel entering the room from a cold outdoor environment will
affect the
temperature measurement accuracy. The forehead temperature test
should be
performed after the forehead is unobstructed for three minutes and
the
temperature is stable;
- The temperature read by the temperature measuring device is the
temperature in the forehead area. When there is water, sweat, oil
or thick
makeup on the forehead or the elderly have more wrinkles, the read
temperature will be lower than the actual temperature. Make sure
there is no
hair or clothing covering this area.
