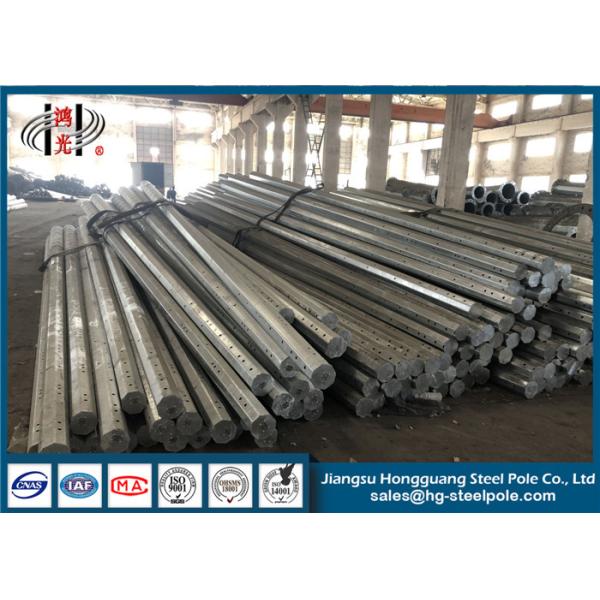

    16m Galvanized Steel Pole With Flange Mode , Power Transmission Poles

    Ask Lasest Price
    Brand Name : JSHG
    Model Number : HG-SP-110KV
    Certification : ISO/CNAS/IAF/CA
    Price : negotiation
    Payment Terms : L/C, T/T or Western Union
    Supply Ability : 3,000 Metric Tons per Month
    Delivery Time : 2 weeks per container after PO / drawing / prepayment confirmed
    • Product Details
    • Company Profile

    16m Galvanized Steel Pole With Flange Mode , Power Transmission Poles

    Steel Electric Pole Galvanized Steel Pole With Flange Mode Power Transmission Poles

    Product Description:


    Products
    • Steel Electric Pole Galvanized Steel Pole With Flange Mode Power Transmission Poles

    Application
    • Electrical Power Transmission

    Standrad
    • NEA Standard

    Painting
    • According to clients' request

    Shape
    • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc),Tubular, Tapered

    Galvanization
    • Hot dip galvanization of substation structure is in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123.
    Life Period
    • More than 25 years, it is according to installing environment

    Product Advantages:

    A. Management team: We have a professional design team to provide services for customers. Provide design drawings.

    B. ISO 9001:2008 certificate provided .

    C. QC Inspection: We have an inspector team to inspect the whole production line, and each pole should be inspected in accordance with the drawing, to make sure all poles are passed before delivery.


    Product Line:

    Before galvanization, we will check the pole quality during the fabrication process from cutting raw plate, bending/forming, automatic welding to drilling holes. Then after hot dip galvanization, we will check the diameters, galvanization thickness and do the load test according to clients' different requirements and then deliver the poles on time according to the contract.

    Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shearing machine, shearing machine, slitting machine, 208T hydraulic straightener, etc. All the purpose is to produce steel poles with high quality.

    Product Show:

    Steel Pole of National Electrification Administration (Philippines)
    Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT, 45FT
    Height
    (ft)
    Thickness
    (mm)
    Top diameter
    (mm)
    Butt diameter
    (mm)
    Design Load
    (kgf)
    Yield Stress
    (MPa)
    Zinc Coating
    (micron)
    25
    2.5
    120
    152
    300
    345
    86
    30
    3.0
    127
    226
    500
    345
    86
    35
    3.0
    127
    248
    500
    345
    86
    40
    3.0
    127
    317
    500
    345
    86
    45
    4.0
    127
    328
    750
    345
    86

    Features:


    1. We can supply the product base on client required drawing ,but also can supply the design for any kinds of lamp poles ,electric poles ,street lighting poles, high mast poles ,garden light poles , outdoor lighting ,outdoor lighting poles ,flag poles ,traffic light poles ,lighting ,road lighting pole.

    2. Matercial :hot rolled coil from Q235 to Q460 ,ASTM573 GR65, GR50 ,SS400, SS490,ST52-3

    3. deal: Hot dip galvanized Following ASTM A 123 or any other stardand by client required.

    4. Packing: Plastic bulble , Mat &Straw Bale or following client required

    5. Length : within 16meters once forming( single section)

    6. Thickness: from 1mm to 25mm

    7. Shape: polygonal(6-side,8side,12-side,16side) round tapered.

    8. 110KV to 220kv

    9. Easy install and maintenance.
