10Micron Metal Fiber Hot Gas Filter Element Electric Bag Composite
Dust Removal
Production description:

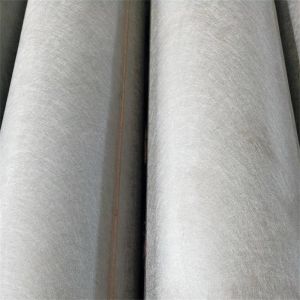

It is made of stainless steel 316L fibers with a micron diameter
through non-woven laying, stacking, and high-temperature sintering,
and then rolled and welded. Usually, the micron rating is 5um,
10um, 15um.
Effectively avoids the disadvantages of non-woven filter bags that
are not resistant to high temperature, ceramic filter elements and
sintered powder elements are brittle.
Product feature:
1. High temperature resistance(400 ℃), strong thermal shock
resistance, corrosion resistance, high strength
2. Handling high wind speed (≥1 m/min)
3. High interception efficiency, emission concentration can be lower
than 5mg / Nm3
4. Good air permeability, reduced initial pressure, low energy
consumption
5. Online backflush and offline cleaning, good regeneration effect
6. Long working life
Technical parameters:
| Product ID | OD (mm) | Length (mm) | Filtration area (m2) | Supporting tube | Temperature (°C) |
| XLMFF-1500 | 130/160 | 1500 | 0.61 / 0.75 | Perforated tube/ Support cage | <400 |
| XLMFF-3000 | 3000 | 1.22 / 1.50 |
| XLMFF-4000 | 4000 | 1.63 / 2.01 |
| XLMFF-5000 | 5000 | 2.04 / 2.51 |
| XLMFF-6000 | 6000 | 2.45 / 3.01 |
| XLMFF-7000 | 7000 | 2.85 / 3.51 |
Main application:
1. Hot gas filtration during the production of Alumina Oxide
2. Catalyst or precious metal recovery in hot gas processes
3. Power,Steel,Cement,Glass,Chemical,Metallurgical Industry
4. Biomass energy
5.The desulfurization denitration processes
