    Asphalt Road Construction Machines 500mm XM503 Pavement Milling Machine

    Ask Lasest Price
    Brand Name : XCMG
    Model Number : XM503
    Certification : ISO CCC
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 Unit/Units per Month
    Delivery Time : 30-35 Work days
    • Product Details
    • Company Profile

    Asphalt Road Construction Machines 500mm XM503 Pavement Milling Machine

    Asphalt Road Construction Machines 500mm XM503 Pavement Milling Machine


    XCMG Road Construction Machines 500mm XM503 Pavement Milling Machine


    Product Description of Road Construction Machines 500mm XM503 Pavement Milling Machine


    XM503 road milling machine is an asphalt road maintenance and construction machine mainly used for the maintenance operations of municipal roads and as the auxiliary construction implement for large milling machines.


    It can realize the small-area digging and renovation of asphalt con- crete pavements, including highways, downtown roads, airports, cargo yards, and parking lots, and can be used for the removal of road bulges, asphalt ripples, overlapping curves, and tracks and for the scuffing of cement roads and the milling of pavement jumps. It can realize the milling along edges and manhole covers. It can realize the road crushing function if the optional hydraulic pickaxe is installed and realize the milling of roadside rumble strips if the optional rumble wheel is installed.


    Featuring high working efficiency, simple construction processes, easy control of milling depth, easy and flexible operations, and good mobility, this machine is an ideal machine for repair, renovation, and maintenance of asphalt roads.


    Product Parameters of Road Construction Machines 500mm XM503 Pavement Milling Machine


    ItemUnitXM503
    Milling widthmm500
    Maximum milling depthmm180
    Tool nose distancemm15
    Number of tools54
    Rotor diameter with tool660
    engine modelSC4H-C125
    Rated speedrpm2200
    Rated powerKw92
    Fuel tankL140
    Water tankL300
    Working speedm/min0-40
    Walking speedKm/h0-6
    Theoretical climbing ability%50
    Discharge maximum heightmm1200
    Theoretical discharge capacitym3/h42
    Total weightKg≤7800/7300
    Minimum milling radiusmm350
    Ground clearancemm180

    Performance Characteristics:

    1. Traveling system: Wheeled type, all-wheel (three-wheel) drive, hydraulic + mechanical drive mode, constantly variable speed change, and high and low gears. The rear wheels adopt independently suspended support wheels. The right rear wheel can swing inward to ease the milling along edges.

    2. Milling system: The hydraulic + mechanical drive mode is applied to achieve efficient and powerful milling. The imported milling cutter heads guarantee the working life of milling cutter.

    3. Control of milling depth: The left and right rear outriggers can be vertically adjusted to allow the wedged milling. The rear outriggers are installed with depth indicator to indicate the milling depth. This machine can be installed with optional automatic leveling system.

    4. Steering system: The full-hydraulic single-front-wheel steering features small steering radius and flexible steering.

    5. Sprinkling system: The sector-shaped water spray nozzles spray water to the milling cutter heads to cool the milling cutter and at the same time reduce the diffusion of dusts during milling. The high capacity water tank can realize the longer working time of machine without interruption. The electric-driven water pump eases the disassembling and cleaning of water spray nozzles.

    6. The advanced, matured, and reliable Shang chai new generation 4-valve SC4H water-cooled engine is applied, featuring strong power and low fuel consumption.

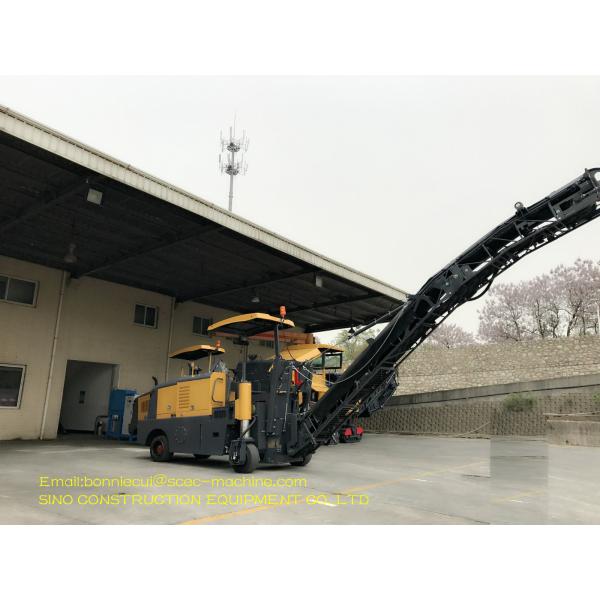

    Photo of Road Construction Machines 500mm XM503 Pavement Milling Machine


    Quality Asphalt Road Construction Machines 500mm XM503 Pavement Milling Machine for sale
