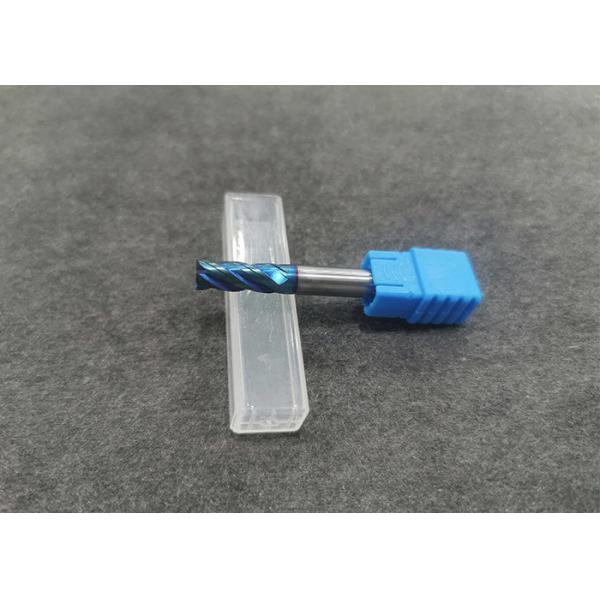

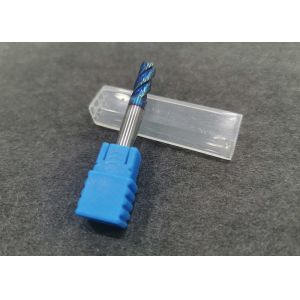

Blue Coated Carbide End Mill For Machine Cutting
Specification:
Name: END MILLS
Material: 100% raw material carbide
Metrial: Tungsten Carbide
Coating: HRC45° HRC50° HRC55° HRC60° HRC65°
Flute: 1Flute 2Flute 3Flute 4Flute 5Flute End Mills
DIAMETER: 4, 6, 8, 10, 12, 14, 16mm are available, the hot sale sizes mills are diameter less than 12mm.
CUSTOMIZE: OEM service is available.
SAMPLE SERVICE: Free samples but shipping fee
About Coatings:
| Endmill Grade | Coating Name | Color | Hv | μm | Friction | The MaxºC | Application |
| HRC 45° coating | AlTiN | black | 3300 | 0.6 | 0.7 | 850ºC | Suitable for General Steel |
| HRC 50° coating | AlTiN | black | 3300 | 0.6 | 0.7 | 850ºC | Suitable for General Steel |
| HRC 55° coating | TiSiAlN | bronzed | 3400 | 0.5 | 0.7 | 900ºC | General Steel,cast cast iron |
| HRC 60° coating | AlCrSiN | black | 4000 | 0.4 | 0.35 | 1100ºC | High Hard Material, steel, cast iron, etc |
| HRC 65° coating | nACo 3 Blue | blue | 4500 | 0.4 | 0.45 | 1200ºC | Titanium Alloy, High-temperature Alloy,material, etc |
| HSS | nACo 3 Blue | Other | 4500 | 0.4 | 0.45 | 1200ºC | Stainless steel |
| Free Sample Test : Contact Us For Inquiry |
Product Catalog:
Product Sizes:
| D1 (Diameter of cut) | d (Shank Diameter) | L (Flute Length) | L1 (Overall Length) |
| 1mm | 4mm | 3mm | |
| 1.5mm | 4mm | 4mm |
| 2mm | 4mm | 6mm |
| 2.5mm | 4mm | 8mm |
| 3mm | 3mm | 8mm |
| 3mm | 4mm | 8mm |
| 3.5mm | 4mm | 11mm |
| 4mm | 4mm | 11mm |
| 1mm | 6mm | 3mm |
| 1.5mm | 6mm | 4mm |
| 2mm | 6mm | 6mm |
| 2.5mm | 6mm | 8mm |
| 3mm | 6mm | 8mm |
| 3.5mm | 6mm | 11mm |
| 4mm | 6mm | 11mm |
| 4.5mm | 6mm | 13mm |
| 5mm | 5mm | 13mm |
| 5mm | 6mm | 13mm |
| 6mm | 6mm | 15mm |
| 7mm | 8mm | 20mm |
| 8mm | 8mm | 20mm |
| 9mm | 10mm | 25mm | |
| 10mm | 10mm | 25mm |
| 12mm | 12mm | 30mm |
| 14mm | 14mm | 45mm | |
| 16mm | 16mm | 45mm |
| 18mm | 18mm | 45mm |
| 20mm | 20mm | 45mm |
Production Process:
Package & Shipping:
Our Advantages:
Suitable for finishing,can achieve the mirror effect.
coating increase surface gloss,and prolonging life.
100% quality guarantee (ISO9001)
Work material: carbide steel, alloy steel, cast iron, copper, mould steel,etc.
100% original tungsten, without recycle parts. Wc90%, Co10%, more cobalt will make end mills more crisp.
Our Company:
JOINT CARBIDE CO., LTD.
Joint carbide co.,ltd was established on January 21, 2019, as a sales branch established
by Zigong joint carbide co.,ltd in Chengdu.Our company covers
20,000 square meters was a high-tech enterprise integrating
research, development, production and sales of cemented carbide
products and cemented carbide rotary burrs,carbide tire
studs,carbide repair tire stud,carbide particles & composite
welding rods.
The company is committed to providing high-precision, high-speed
and efficient metal grinding solutions and services for the
machinery manufacturing industry. The company introduced the most
advanced international five-axis five-linkage CNC tool grinder,
three-coordinate tool detector and other equipment from Germany.
The aim is to produce high-quality, internationally competitive
products using internationally advanced equipment. At present, our
company has become the largest rotary file production base in the
country, with a mature R&D team and management team in China,
and a stable supply chain.
As a metal cutting tool, the rotary file has been exported to
Europe, North America, South America and a small number of
Southeast Asian countries.A few days ago, the company has completed
the accumulation of various infrastructure and technology research
and development. Since 2020, our company has added 200 five-axis
and five-linkage rotary grinders. By 2023, our company will invest
a total of 400 five-axis and five-linkage rotary grinders. Grinding
machine (total value 150 million yuan). By then, our company will
become the world's largest supply base for rotary files.We have the
world's advanced raw material cemented carbide formula technology,
the most optimized advanced manufacturing process, and the
largest-scale production equipment.
