    Accurate Portable Vibration Analyzer Vibration Tester Frequency 159.2Hz Frequency

    Ask Lasest Price
    Brand Name : HUATEC
    Model Number : HG-5005
    Certification : CE ISO
    • Product Details
    • Company Profile

    Accurate Portable Vibration Analyzer Vibration Tester Frequency 159.2Hz Frequency

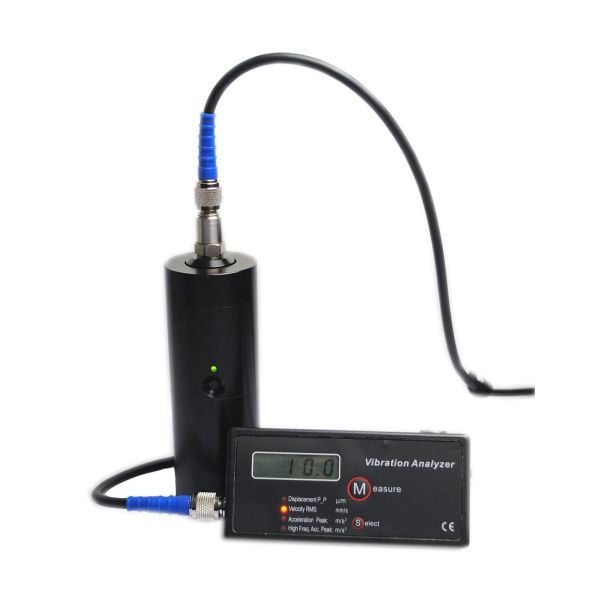

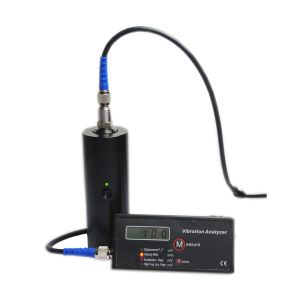

    Handheld Vibration Calibrator Vibration Meter Vibration Tester Frequency 159.2Hz


    It generates sinusoid vibration at frequency 159.2Hz. Can be used to calibrate vibration transducer. The frequency & amplitude of the vibration acceleration, velocity and displacement are all fixed so do not need any adjustment.


    HG-5005 combines signal generator, power amplifier, standard transducer and a shaker in one and features a small size, high accuracy and easy operation. It can be used either for laboratory reference or on site verification.


    It is controlled by 1 button for power on. After 50 second vibration, it powers off automatically. A green/orange LED for operation and low battery indication.


    Specifications

    Frequency: 159.2Hz +0.5%

    Amplitude:

    Acceleration: 9.81 m/s2 RMS

    Velocity: 9.81mm/sec RMS

    Displacement: 9.81 micron RMS

    Accuracy: + 5%

    Distortion: < 3%

    Maximum load: 120 grams

    Power: 9V Battery rechargeable for 1.5 hours operation

    Charge time: 15hours.

    Sensor Mounting base: M5 tapped hole

    Size: φ52×160(mm)

    Weight: 500 grams

    Temperature: Operation: 0oC to 55 oC

    Humidity: 90% non –condensing
