    IEC 60335-1 Oxygen Bomb Aging Test Chamber 4000cm3 Stainless Steel Air Bomb Tank

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN1109
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : L/C, , T/T, Western Union, MoneyGram
    Supply Ability : 20 sets per month
    Delivery Time : 30 Days
    • Product Details
    • Company Profile

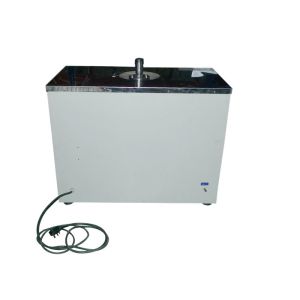

    IEC 60335-1 Oxygen Bomb Aging Test Chamber 4000cm3 Stainless Steel Air Bomb Tank


    IEC 60335-1 Oxygen Bomb (Air Bomb) Aging Test Chamber


    Standards & Clauses:


    IEC60335-1:2016 “Household and similar electrical appliances-Safety-Part1:General requirements” clause 22.32


    Samples and Restrictions:


    Wire and cable, rubber (plastic, leather) insulation and sheathing, as well as other polymer material


    Application:


    It is suitable for the aging test in the oxygen and compressed air to the wire and cable, rubber (plastic, leather) insulation and sheathing, as well as other polymer materials under the action of a predetermined pressure and temperature.


    Equipment Structure:


    The test device is composed of stainless steel tank container, electrical control cabinet.
    The tank consists of outside enclosure, insulation layer, heater, temperature aluminum cover, stainless steel pressure tank, the sample tray, automatic overpressure protection devices and other components.
    The electrical control cabinet mainly consists of outside cabinet, power distribution box and gas distribution chassis.


    Technical Parameters:


    Parameters NameParameter Data
    PowerAC 220V±10%, 50Hz or match client's local power supply
    Maximum Working Pressure4MP/C㎡
    Security Burst Pressure2.7-3.3MP/C㎡
    Temperature self-control rangeRoom temperature -200℃
    Temperature Deviation±1℃
    Temperature controlDigital display automatic control
    Tank materialsStainless steel
    Tank volume4000cm3
    Heater power2.4KW
    Dimensions820×420×670mm
