Acid Environmental OK PTFE Mesh Pad Demister Mist Extractor

Acid Environmental OK PTFE Mesh Pad Demister Mist Extractor

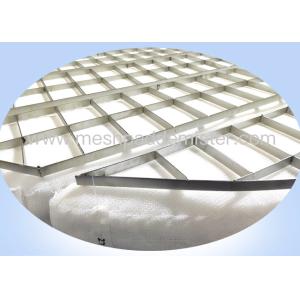

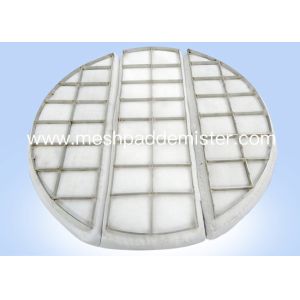

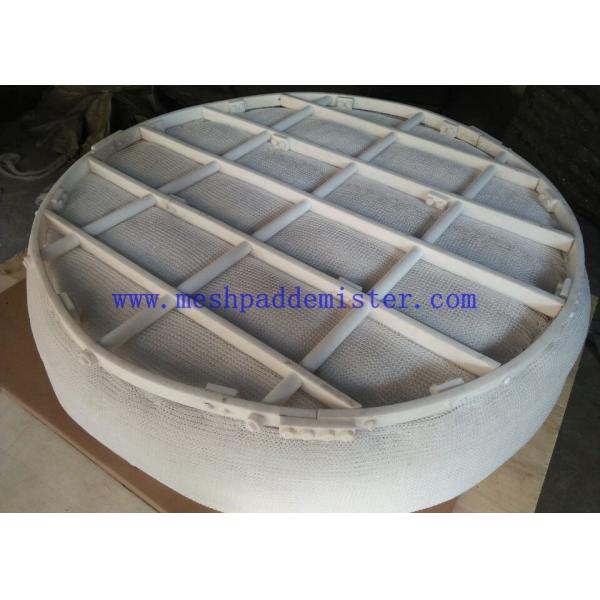

1. PTFE Mesh Pad Demister Mist Extractor Description :

Mesh pad demister, which are used in removing droplets entrained in flow gas, is constructed from knitted wire mesh with a cellular structure. The knit mesh are made into a mesh pad with determinate thickness and diameter, through which the two phases liquid-gas or liquid-vapor are disengaged.

2. PTFE Mesh Pad Demister Mist Extractor Specification :

3. PTFE Mesh Pad Demister Mist Extractor Application:

1. Knockout drums and separators – save on capital costs by decreasing vessel size-recover costly fatty acids from stream-reduce compressor maintenance by preventing scale build-up.
2. Absorbers – reduce overhead losses of glycols in dehydrators to no more than 0.1 gal/MMSCF natural gas-cut losses of absorption oil and amines in CO2 systems.
3. Scrubbers – reduce chemical discharges from Kraft mill smelt dissolver tank to less than 0.11 kg/dry ton (0.25 lb/dry ton) of pulp-improve scrubber efficiency by removing particulates carried in entrained liquids.
4. Distillation columns – improve product purities and increase throughput capacities for petrochemicals, organic intermediates, fine chemicals.
5. Evaporators – prevent carryover loss of valuable products, keep condensate TDS <10 ppm for highest quality boiler feed water-clean up vacuum ejector stream discharge-lower maintenance in vapor re-compression systems.
6. High pressure steam systems – provide dry steam- cut TDS to <10 ppb in condensate-eliminate build-up on turbine blades.
7. Refinery towers – increase throughput capacity-take deeper cuts for greater product yields – prolong catalyst life in downstream cracking and reforming units by reducing carbon and metals in side draws-use lower grade crudes.

4. PTFE Mesh Pad Demister Mist Extractor Salient Features :

1. High removal efficiency
2. No limitation on size or shape.
3. Easily installed in existing vessels
4. Little maintenance or service required
5. Almost no corrosion or temperature limitations
6. Negligible pressure drop, less than 25mm of water gauge
